TP-Link Omada FC311B-20 Fiber to RJ45 Converter - Fiber up to 20km - Speed ​​up to 1Gbps - Auto Negotiation - Ethernet - WDM Technology - Dark Gray Color

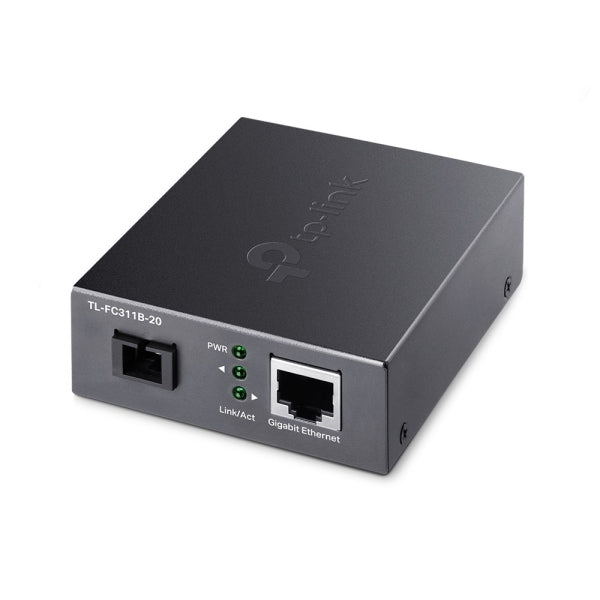

The TP-Link FC311B-20 is a fiber optic converter designed to facilitate the integration of Ethernet networks with single-mode fiber connections. Thanks to its WDM (Wavelength Division Multiplexing) technology, it allows data to be transmitted and received in a single fiber, optimizing the use of cabling and reducing costs in long-distance installations. With the ability to extend the signal up to 20 kilometers, this device is ideal for connecting remote headquarters or expanding the coverage of existing networks without compromising the speed or quality of the transmission.
This converter has a 10/100/1000Mbps RJ45 port that supports Auto-Negotiation and Auto-MDI/MDIX, making it easy to connect with different devices without the need for additional configurations. In addition, it has a SC/UPC single-mode fiber port that operates at wavelengths of 1310 nm for transmission and 1550 nm for reception, guaranteeing stable and efficient communication in demanding environments. Its compact design and easy installation make it a practical and reliable solution for enterprise and large-scale networks.
The TP-Link FC311B-20 complies with IEEE 802,3, IEEE 802,3i, IEEE 802,3u, IEEE 802,3ab, IEEE 802,3x and IEEE 802,3z standards, ensuring compatibility and optimal performance. Its external 5V/0,6A power supply, along with PWR and Link/Act LED indicators, make it easy to monitor and control the device. With an operating temperature range of 0 to 50 degrees Celsius and relative humidity of up to 90%, it is prepared to operate in various professional environments.
Features:
-Single-mode fiber converter with WDM technology for transmission and reception on a single fiber
-Distance extension up to 20 km
-10/100/1000Mbps RJ45 Port with Auto-Negotiation and Auto-MDI/MDIX
-SC/UPC fiber port for high-speed connections
-Compatible with IEEE standards and supports multiple network protocols
-Compact design and easy to install
-LED indicators for power and link status
Specifications:
-Interface: 1× Gigabit SC/UPC Fiber Port, 1× 10/100/1000Mbps RJ45 Port (Auto MDI/MDIX)
-Network media: Single-Mode Fiber (9/125μm, maximum 20 km), UTP category 5, 5e cable (maximum 100 m)
-Power supply: External Power Adapter 5 V/0,6 A
-Wavelength: 1310 nm TX, 1550 nm RX
-Dimensions: 3,7×2,9×1,1 inches (94,5×73,0×27,0 mm)
-Operating temperature: 0 °C to 50 °C
-Storage temperature: -40 °C to 70 °C
-Operating humidity: 10% to 90% RH non-condensing
-Storage humidity: 5% to 90% RH non-condensing
