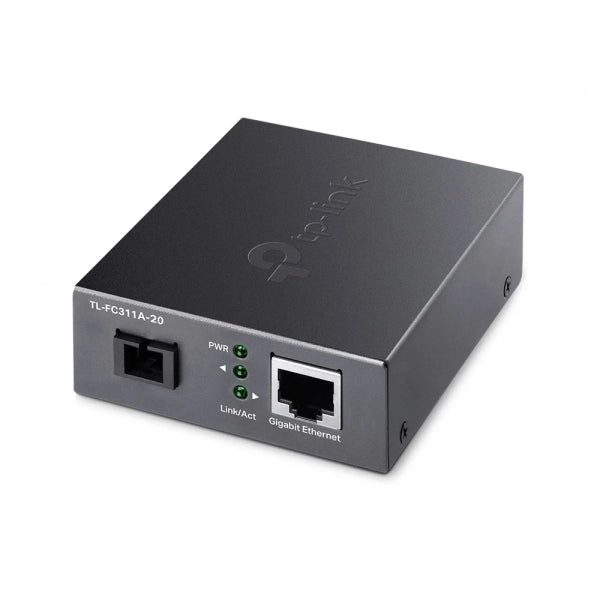

TP-Link Omada FC311A-20 Fiber to RJ45 Converter - Fiber up to 20km - Speed ​​up to 1Gbps - Auto Negotiation - WDM Technology - Dark Gray Color

The TP-Link TL-FC311A-20 media converter is the perfect solution to expand and optimize your fiber optic network. Designed to offer a reliable, high-speed connection, this device allows data transmission over single-mode fiber up to 20 kilometers, guaranteeing efficient communication over long distances. Its compatibility with WDM technology allows data to be transmitted and received over a single fiber, simplifying infrastructure and reducing costs.
This converter combines a 10/100/1000Mbps RJ45 port with auto-negotiation and support for Auto-MDI/MDIX, making it easy to connect with different devices without the need for additional configurations. In addition, it supports Half-Duplex and Full-Duplex transfer modes, adapting to the specific needs of your network. Its compact and robust design, along with LED status indicators, ensure easy installation and monitoring of operation at all times.
With an external 5V/0,6A power supply, the TL-FC311A-20 is ready to deliver stable performance in environments with operating temperatures from 0°C to 50°C. It is ideal for enterprise networks, data centers or facilities that require a reliable, high-performance fiber extension, guaranteeing fast and secure connectivity at all times.
Features:
-Media converter with WDM technology for single fiber transmission
-Distance extension up to 20 km in single-mode fiber
-10/100/1000Mbps RJ45 Port with Auto-Negotiation and Auto-MDI/MDIX
-Support for Half-Duplex and Full-Duplex modes
-Interface: Gigabit SC/UPC Fiber and RJ45 port
-Compatible with IEEE 802,3, 802,3i, 802,3u, 802,3ab, 802,3x, 802,3z standards
-Network media: single-mode fiber (9/125μm) and category 5/5e UTP cable
-External 5V/0,6A power supply
-LED indicators: PWR, Link/Act
-Wavelength: 1550 nm TX, 1310 nm RX
-Dimensions: 94,5×73,0×27,0 mm
-Operating temperature range: 0°C to 50°C
-Storage temperature range: -40°C to 70°C
-Operating humidity: 10% to 90% RH
-Storage humidity: 5% to 90% RH
Specifications:
-Model: TL-FC311A-20
-Type: Media Converter
-Speed: 1000 Mbit/s
-Fiber type: Singlemode
-Wavelength: 1550 nm (TX), 1310 nm (RX)
-Maximum distance: 20 km
-RJ45 port: 10/100/1000 Mbps, Auto-MDI/MDIX
-Fiber port: Gigabit SC/UPC
-Power supply: 5 V/0,6 A
-Dimensions: 94,5×73,0×27,0 mm
-Operation temperature: 0 °C to 50 °C
-Operating humidity: 10% to 90% RH
-Includes: Media Converter, power adapter, installation guide
