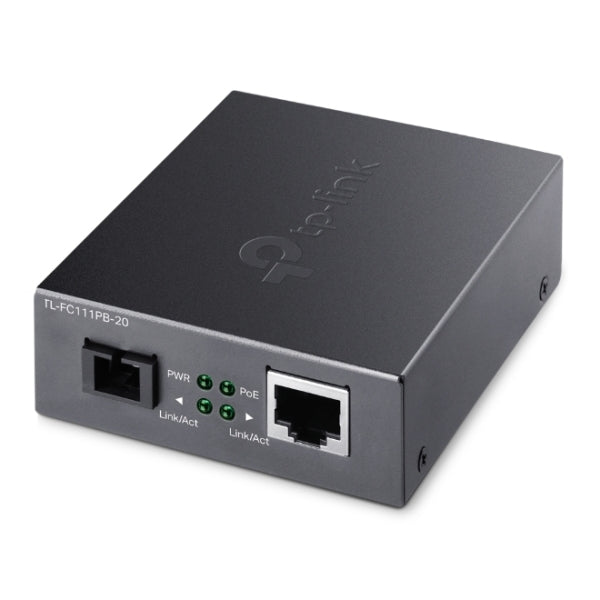

TP-Link Omada FC111PB-20 Fiber to RJ45 Converter - Fiber up to 20km - Speed ​​up to 100Mbps - Ethernet - WDM Technology - Dark Gray Color

The TP-Link FC111PB-20 Fiber Converter is the ideal solution for those looking for a reliable and efficient network connection that combines fiber optic and copper technology. Designed to facilitate data transmission over long distances, this device allows you to convert optical signals into electrical signals, and vice versa, with a range capacity of up to 20 kilometers in single-mode fiber. Its compatibility with WDM (wave division multiplexing) technology optimizes the use of fiber, allowing data to be transmitted and received through a single fiber instead of two, reducing costs and simplifying infrastructure.
This converter has a PoE output that complies with the 802,3af standard, facilitating the installation of security cameras and other network devices that require electrical power through the Ethernet cable. The interface includes a 10/100Mbps RJ45 port with auto MDI/MDIX and a 100Mbps SC/UPC fiber port, allowing easy integration into different network environments. In addition, its robust design and operating temperature range of 0 to 50 °C ensure stable performance in various operating conditions, making this equipment a versatile and durable option for enterprise network projects, CCTV and industrial applications.
With a 48V/0,5A power supply, the converter is easy to install and maintain. Its LED indicators provide clear information on power, link and PoE status, making it easy to monitor operation. Compact and dimensionally accurate, the FC111PB-20 is an efficient solution to expand and improve network infrastructure, ensuring fast, secure and high-quality data transmission over extended distances.
Features:
-Fiber optic and copper converter with range up to 20 km
-WDM technology for single fiber transmission
-802,3af PoE output to facilitate the installation of cameras
-Interface: 1 RJ45 10/100 Mbps port, 1 SC/UPC 100 Mbps fiber port
-Compatible with IEEE802,3, IEEE802,3i, IEEE802,3u standards
-Network media: 100BASE-Tx, single-mode fiber 9/125μm
-Power supply: 48 V/0,5 A
-LED indicators: PWR, Link/Act, PoE
-Operating temperature: 0–50 °C
-Dimensions: 94,5×73,0×27,0 mm
Specifications:
-RJ45 port speed: 10/100 Mbps
-Fiber type: Singlemode (9/125 μm)
-Maximum fiber range: 20 km
-TX wavelength: 1310 nm
-RX wavelength: 1550 nm
-Power supply: 48 V/0,5 A
-Operating temperature: 0–50 °C
-Storage temperature: -40–70 °C
-Operating humidity: 10–90% RH
-Storage humidity: 5–90% RH
