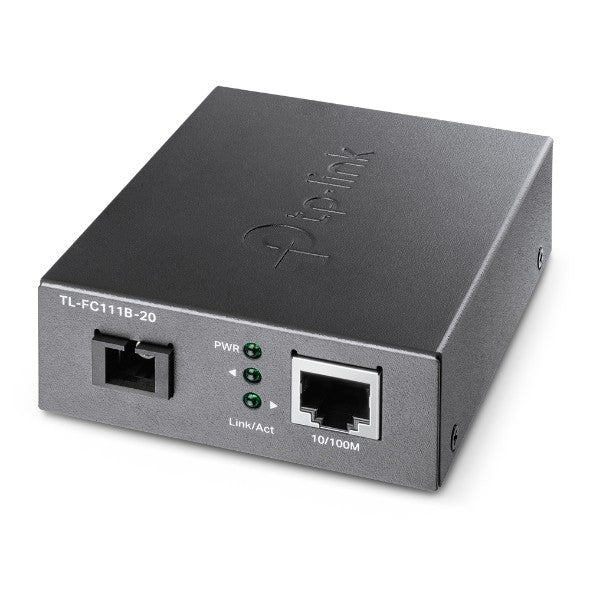

TP-Link Omada FC111B-20 Fiber to RJ45 Converter - Fiber up to 20km - Speed ​​up to 100Mbps - Auto Negotiation - Ethernet - WDM Technology - Dark Gray Color

The TP-Link FC111B-20 is a fiber optic converter designed to facilitate the expansion and improvement of Ethernet networks. Thanks to its WDM (Wavelength Division Multiplexing) technology, it allows data to be transmitted and received in a single fiber, optimizing the use of cabling and reducing costs in long-distance installations. This device is ideal for business and telecommunications environments that require stable, high-speed connections over distances of up to 20 kilometers.
This converter supports the 802,3u 10/100Mbps and 100Base-FX standards, guaranteeing compatibility with most existing networks. In addition, it has a 10/100Mbps RJ45 interface with automatic negotiation in Half-Duplex or Full-Duplex mode, and a 100 Mbps SC/UPC fiber optic port. Its compact and robust design, together with its external power supply, facilitates its integration in different environments, ensuring reliable and efficient performance in the data transmission.
With advanced features such as WDM technology, the ability to extend transmission distance up to 20 km, and compatibility with copper and fiber network media, the FC111B-20 is a versatile solution for improving network infrastructure. Its easy installation, LED status indicators and operation in a wide range of temperatures and humidity, make this converter a reliable and efficient option to connect networks safely and effectively.
Features:
-Compatible with IEEE802,3, IEEE802,3i, IEEE802,3u standards
-Single-mode fiber transmission up to 20 km
-WDM technology for transmission and reception in a single fiber
-RJ45 10/100Mbps interface with auto-negotiation
-SC/UPC fiber optic port at 100 Mbps
-Supports Half-Duplex and Full-Duplex modes
-External power supply of 5 V/0,6 A
-PWR and Link/Act LED indicators
-Compact dimensions: 94,5 x 73 x 27 mm
-Operating temperature range: 0°C to 50°C
-Operating humidity range: 10% to 90% RH
Specifications:
-Standards and Protocols: IEEE802,3, IEEE802,3i, IEEE802,3u
-RJ45 interface: 10/100 Mbps, Auto MDI/MDIX
-Fiber interface: SC/UPC, 100 Mbps
-Network media: Single-Mode Fiber (9/125μm), up to 20 km
-Copper media: 2-Pair UTP/STP Cat. 5 or higher, up to 100 m
-Power supply: External Power Adapter, 5 V/0,6 A
-Wavelength: 1310 nm TX, 1550 nm RX
-Dimensions: 94,5*73*27 mm
-Operating temperature: 0 °C to 50 °C
-Operating humidity: 10% to 90% RH
-Storage humidity: 5% to 90% RH
