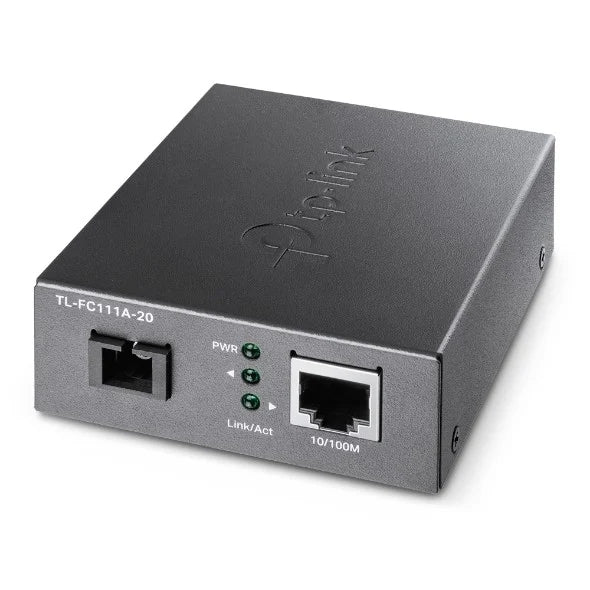

TP-Link Omada FC111A-20 Fiber to RJ45 Converter - Fiber up to 20km - Speed ​​up to 100Mbps - Auto Negotiation - Ethernet - WDM Technology - Dark Gray Color

The TP-Link TL-FC111A-20 media converter is the perfect solution for expanding and improving network infrastructure in environments that require high-speed and reliable fiber optic connections. Designed to support IEEE 802,3u 10/100Base-TX and 100Base-FX standards, this device enables easy integration between traditional Ethernet networks and single-mode fiber networks, facilitating data transmission over long distances without loss of quality. Its WDM (Wavelength Division Multiplexing) technology allows data to be transmitted and received in a single fiber, optimizing the use of cabling and reducing costs in large-scale installations.
This converter features an easy-to-use interface, including a 100Mbps SC/UPC fiber port and a 10/100Mbps RJ45 port with auto-negotiation in Half-Duplex or Full-Duplex mode. Thanks to its ability to extend the transmission distance up to 20 kilometers, it is ideal for connections on campuses, corporate networks or facilities where distance and signal quality are crucial. Additionally, its compact and robust design, along with LED status indicators, make it easy to install and monitor operation at all times, ensuring stable and efficient operation.
With an external 5V/0,6A power supply, the TP-Link TL-FC111A-20 is prepared to offer reliable performance in different environmental conditions, supporting operating temperatures from 0°C to 50°C and relative humidity from 10% to 90%. Its compact size of 94,5 x 73 x 27mm makes it suitable for different spaces and configurations, ensuring easy integration into any network environment. It includes everything necessary for installation, such as the power adapter and user guide, facilitating a quick and hassle-free start-up.
Features:
-Complies with IEEE 802,3, IEEE 802,3i, IEEE 802,3u standards
-Transmits in single-mode fiber up to 20 km
-WDM technology for transmission and reception in a single fiber
-100 Mbps SC/UPC fiber connection
-10/100Mbps RJ45 port with auto-negotiation
-Extends network distance up to 20 km
-Supports Category 5 or higher UTP/STP network media
-PWR and Link/Act status LED indicators
-External 5V/0,6A power supply
-Compact dimensions of 94,5 x 73 x 27 mm
-Operating temperature range 0°C to 50°C
-Operating humidity from 10% to 90%
Specifications:
-Standards and Protocols: IEEE802,3, IEEE802,3i, IEEE802,3u
-Interface: 1× 100Mbps SC/UPC Fiber Port, 1× 10/100Mbps RJ45 Port (Auto MDI/MDIX)
-Network Media: Single-Mode Fiber (9/125μm, maximum 20 km), 100BASE-Tx (2-Pair UTP/STP, Cat. 5 or higher, maximum 100 m)
-Power supply: External Power Adapter: 5 V/0,6 A
-LED: PWR, Link/Act
-Wavelength: 1550 nm TX, 1310 nm RX
-Dimensions: 94,5*73*27 mm
-Operating temperature: 0ËšC to 50ËšC
-Storage temperature: -40ËšC to 70ËšC
-Operating humidity: 10% to 90% RH
-Storage humidity: 5% to 90% RH
