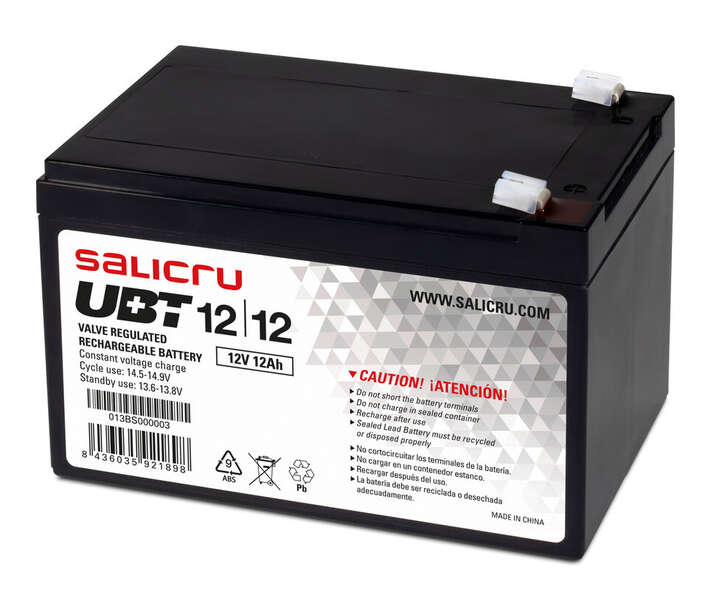

Salicru UBT 12/12 12 Ah / 12 V Rechargeable AGM Battery - Black Color

The Salicru UBT 12/12 is a 12 Ah / 12 V rechargeable AGM battery in black. It has a nominal voltage of 12 V and has 6 cells. With an internal resistance of 19 m?, it has a self-discharge capacity of 3%. It can withstand a maximum discharge current of 180 A for 5 seconds and a short circuit current of 630 A. Its nominal capacity varies depending on the discharge time, being 12 Ah at 25 ?C for 20 hours, 11 Ah for 10 hours, 10,25 Ah for 5 hours and 7,2 Ah for 1 hour. It can work in a temperature range of -15 ?C to +50 ?C during discharge, -10 ?C to +50 ?C during charging and -20 ?C to +50 ?C during storage. It is compatible with the SLC TWIN PRO2 0-3 kVA, SLC CUBE3+ and SLC ADAPT X series. Its dimensions are 98 mm deep, 151 mm wide and 95 mm high, and it weighs 3,4 kg.
Technical specifications
-Nominal voltage (V) 12
-Number of cells 6
-Internal resistance? 19 m?(1)
-Auto-discharge 3% (2)
-Maximum discharge current 180 A (5s)
-Short circuit current 630A
-Nominal capacity at 25 ?C
-20 hours 12 Ah (0,6 A, 10,5 V)
-10 hours 11 Ah (1,12 A, 10,5 V)
-5 hours 10,25 Ah (2,05 A, 10,5 V)
-1 hour 7,2 Ah (7,86 A, 9,6 V)
-Working temperature range
-Discharge -15 ?C � +50 ?C
-Load -10 ?C � +50 ?C
-Storage -20 ?C � +50 ?C
COMPATIBILITY
BATTERY
S VS SERIES
-Series SLC TWIN PRO2 0-3 kVA, SLC CUBE3+, SLC ADAPT
DIMENSIONS
-Depth (mm) 98
-Width (mm) 151
-Height (mm) 95
WEIGHT
-Weight (kg) 3,4
-(1) Fully charged battery at 25 ?C. (2) Capacity reduction per month at 20 ?C (average)
