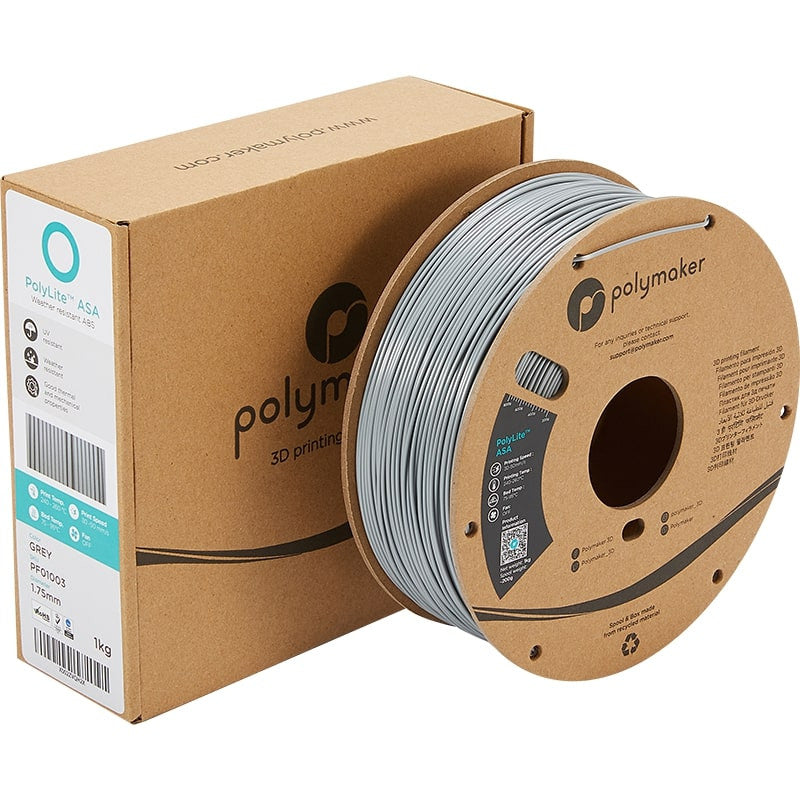

3D ASA Filament - Diameter 1.75mm - Coil 1kg - Color Gray

ASA is a material similar to ABS, but with greater resistance and durability. It stands out for its high resistance to environmental stress damage and its ability to withstand adverse climatic conditions and ultraviolet radiation, maintaining its brightness, color and mechanical properties after a wide exposure to open air.
It is ideal for exterior applications that require durability and stability, such as in automotive, electrical and aerospace industry. Its resistance to impacts and high temperatures makes it perfect for components exposed to mechanical and environmental stress, providing a durable and reliable solution for various industrial applications.
Features:
-Diameter 1.75mm.
-1000 gram coil.
General printing parameters:
-Nozzle temperature (between 240ºC and 260ºC)
-Bed temperature (between 70ºC and 100ºC)
- Print in closed box
Physical properties:
- Density: 1.07 g/cm3 (ASTM D792)
- Contraction mold (flow) 3.2mm: 0.4-0.7% (ASTM D955)
- Flow index (220ºC / 10Kg): 12 g/10 min (ASTM D1238)
Mechanical properties:
- Tensile strength, 3.2 mm (@YIELD 50 mm/min): 480 kg/cm2 (ASTM D638)
- Elongation due to tension, 3.2 mm (@YIELD 50 mm/min): >6 % (ASTM D638)
- Elongation due to tension, 3.2 mm (@Break 50mm/min): 25% (ASTM D638)
- Tensile modulus (1mm/min): 21,200 kg/cm2 (ASTM D638)
- Flexible strength (15 mm/min): 770 kg/cm2 (ASTM D790)
- Bending modulus (15 mm/min): 22,500 kg/cm2 (ASTM D790)
- IZOD impact resistance, 6.4 mm. 23ºC (shown): 16 kg·cm/cm (ASTM D256)
- IZOD impact resistance, 6.4 mm. -30ºC (shown) 4 kg·cm/cm (ASTM D256)
- IZOD impact resistance, 3.2 mm. 23ºC (shown): 18 kg·cm/cm (ASTM D256)
- IZOD impact resistance, 3.2 mm. -30ºC (shown): 4 kg·cm/cm (ASTM D256)
- Rockwell hardness (R scale): 103 (ASTM D785)
Thermal properties:
- Thermal deflection temperature, 6.4 mm, 18.6 kg (uncoated): 86 ºC (ASTM D648)
- Thermal deflection temperature, 6.4 mm, 4.6 kg (uncoated): 96 ºC (ASTM D648)
- VICAT cooling temperature (5 kg, 50ºC/h): 95 ºC (ASTM D1525)
- Flammability (0.8mm): HB class (UL94)
- Flammability (1.6mm): HB class (UL94)
- Flammability (2.5mm): HB class (UL94)
- Flammability (3.2mm): HB class (UL94)

Suitable for use on the following printers:
3D ASA 1.75mm 1kg

Yield: 1.75 mm / 1 kg
