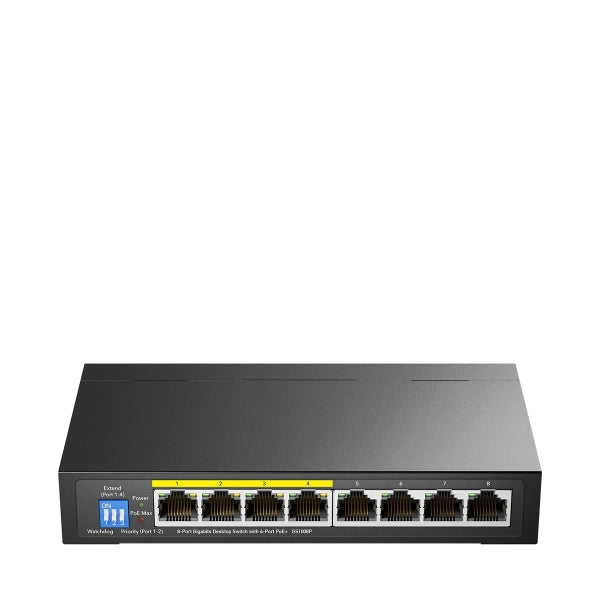

Cudy Switch 8 Ports - 16Gbps Switching Capacity - 4x RJ45 - 4x RJ45 PoE+ - Automatic Restart - LED Indicators - IGMP Surveillance - Loop Prevention - 155x86x26mm - Black Color

This switch combines power, efficiency and versatility in a compact and robust design. With a 60W power supply, it offers intelligent power management for PoE applications, allowing the connection and power of devices such as surveillance cameras, access points and VoIP phones. Its 8 Gigabit RJ45 ports, of which 4 support PoE with IEEE 802,3at/af standards, guarantee fast and reliable transmission, with a maximum power of 30W per port. In addition, it has advanced functions such as priority mode, PoE extension mode and monitoring on or off, allowing efficient and flexible management of traffic and energy on your network.
This device is designed to adapt to different environments, whether desktop or wall-mounted, thanks to its compact 155×86×26mm size and sturdy metal casing. It includes physical buttons to activate or deactivate key functions such as priority, extension and PoE watchdog, making it easy to configure and control in real time. Status LEDs provide clear information about the power, PoE status, connection and activity of each port, allowing for simple and effective monitoring. Its compatibility with cables of different categories and distances of up to 250 meters in extension mode, ensures a versatile and long-range installation.
In terms of performance, this switch supports a switching capacity of 16 Gbps, with a forwarding rate of 11,904 Mpps and the ability to manage up to 8,192 MAC addresses. It meets strict compatibility and protection standards, including flow control protocols, QoS, IGMP Snooping and loop prevention, ensuring a stable and secure network. Its energy efficiency, low idle mode consumption and resistance to electromagnetic interference make this equipment a reliable option for professional environments that require performance, security and ease of management in a powerful and compact PoE solution.
Features:
-4× GbE with PoE mode 802,3at/af Mode A
-4× GbE
-60W power supply
-Priority On/Off, Extend On/Off
-Surveillance activated/deactivated
- PoE maximum status LED
-Desk, wall mount
-155×86×26mm (6,1×3,39×1,02)
Specifications:
-Gigabit RJ45 ports: 8
-Gigabit RJ45 PoE ports: #1~#4
-Maximum power on a single PoE port: 30W
-Notes on PoE ports: PoE ports comply with IEEE 802,3at/af standards.
-PoE Priority: Intelligent Power Management: Automatically disconnects the most recently powered device when power consumption exceeds budget.
-Shielded RJ45 port: True
-Ports in priority mode: #1~#2
-Ports in extension mode: #1~#4
-LED: Power status / PoE status of each PoE port / Link/Activity of each Ethernet port / Maximum PoE status
-Power interfaces: DC connector
-Physical buttons: Priority On/Off / Extend On/Off / PoE Watchdog On/Off
-Note on physical buttons: The PoE Watchdog will attempt to restart connected clients that have been idle for 5 minutes. Do not activate it for clients with automatic online update function.
-Copper speed and distance: Cat. 3 or higher cable: 100 meters at 10Mbps / Cat. 5 or higher cable: 100 meters at 100Mbps / Cat. 5e or higher cable: 100 meters at Gigabit / Cat. 5e or higher cable: 250 meters at 10 Mbps
-Copper speed and distance note: 250 meter transmission is only available on ports in extension mode when this mode is activated.
-MAC address table: 8192
-Maximum switching capacity: 16 Gbps
-Maximum forwarding rate: 11,904 Mpps
-Jumbo Frame: 15 KB
-Packet buffer: 4 Mbit
-Power methods: DC
-Power input: 54V⎓1,11A
-Power adapter included in the box: Input: 100-240V~, 50/60Hz Output: 52V⎓1,11A
-Power supply: 60W
-Maximum power without PoE: 5W
-Power consumption in idle mode: 1,5W
-802,3 protocols: 802,3i 10BASE-T / 802,3u 100BASE-TX / 802,3ab 1000BASE-T / 802,3x Flow control / 802,3af PoE / 802,3at PoE
-802,1 protocols: 802,1p: QoS/CoS at layer 2 LAN
-L2 Features: IGMP Snooping / Loop Prevention / Loop Detection / DSCP QoS / 802,1p QoS
-EMS: IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV, Air: 8kV IEC/EN 61000-4-5, Level 4 Overvoltage: Power: DM 2kV, CM 4kV, RJ45: CM 4kV
-Ambient: Operating temperature: 0~40 ℃ (32~104 ℉) Storage temperature: -40~70℃ (-40~158 ℉) Operating humidity: 10~90% without condensation Storage humidity: 10~95% without condensation
-Dimension: 155×86×26mm 6,1×3,39×1,02 inch
-Product weight: 309,0g (10,9 oz.)
