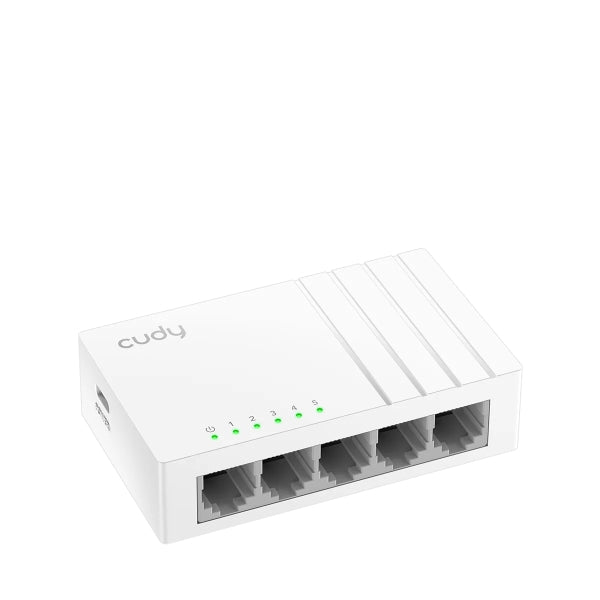

Cudy Switch 5 RJ45 Ports - Powered by USB-C - 10Gbps Switching Capacity - LED Indicators - IGMP Surveillance Function - 88x52,5x24mm - White Color

This USB-C powered mini Ethernet switch is the perfect solution for those looking to share a wired network easily and efficiently on their desktop, on a wall or in a distribution box. Compact and lightweight, its 88×52,5×24mm design allows easy integration into any space, whether in a professional environment or at home. Thanks to its USB-C power, it does not require additional adapters, making it easy to install and use anywhere with an available USB-C port.
Equipped with 5 Gigabit Ethernet ports, this switch guarantees fast and stable connections for all your devices. It includes advanced features such as IGMP monitoring and indicator LEDs for speed, link and activity on each port, allowing easy monitoring of network status. Its switching capacity of up to 10Gbps and a forwarding rate of 7,44 Mpps ensure optimal performance, even in environments with multiple connected devices. In addition, its compatibility with cables of different categories (Cat. 3, 5, 5e) allows distances of up to 140 meters in Gigabit to be reached, adapting to various installation needs.
Designed to offer energy efficiency, this mini switch consumes a maximum of 1,2W and has basic energy saving functions. Its durable plastic construction and option for wall mounting or desktop placement make it easy to integrate into any workspace. With support for 802,3 protocols and flow control functions, this device combines performance, ease of use and efficiency in a compact size, being the ideal option to improve and expand your wired network in a simple and reliable way.
Features:
-Power via USB-C
-5 Gigabit Ethernet ports
-IGMP surveillance
-Max. 1,2 W, idle 0,2 W
-Desk, wall mount
-88×52,5×24mm (3,46×2,07×0,94″)
Specifications:
-Gigabit RJ45 ports: 5
-LED: Power / Speed / Link / Activity of each Ethernet port
-Power interfaces: USB-C port
-Copper speed and distance: Cat. 3 or higher cable: 100 meters at 10Mbps / Cat. 5 or higher cable: 100 meters at 100Mbps / Cat. 5e or higher cable: 140 meters at Gigabit
-MAC address table: 2048
-Maximum switching capacity: 10 Gbps
-Maximum forwarding rate: 7,44 Mpps
-Jumbo Frame: 9 KB
-Packet buffer: 1 Mbit
-Basic Energy Savings: True
-Power methods: USB-C
-Power input: 5V⎓1A
-Maximum power consumption: 1,2W
-Power consumption in idle mode: 0,2W
-802,3 Protocols: Flow Control 802,3x / 10BASE-T 802,3i / 100BASE-TX 802,3u / 1000BASE-T 802,3ab
-L2 functions: IGMP surveillance
-EMS: IEC/EN 61000-4-2, Level 2 ESD: Contact: 4kV, Air: 8kV IEC/EN 61000-4-5, Level 3 Overvoltage: 2kV
-Environment: Operating temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Humidity Operating: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing
-Dimensions: 88×52,5×24mm 3,46×2,07×0,94 inches
-Housing material: Plastic
-Installation: Desktop / Wall Mount
