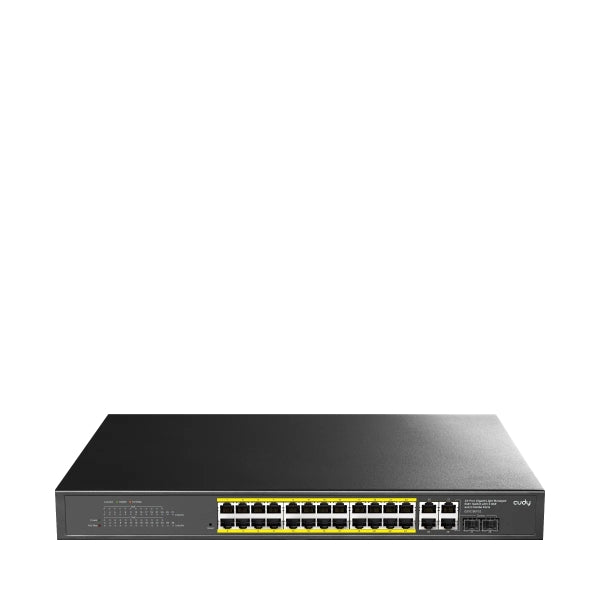

Cudy Switch 28 Ports - 56Gbps Switching Capacity - 24x RJ45 PoE+ - 2x RJ45 GbE - 2x Gigabit SFP - Automatic Restart - IGMP Surveillance - Loop Prevention - 440x220x44mm - Black Color

This rack-mounted PoE switch is the ideal solution for enterprise networks that require performance, advanced management, and a reliable infrastructure. With 24 Gigabit Ethernet ports supporting PoE 802,3at/af, it allows powering connected devices such as IP cameras, wireless access points and VoIP phones, simplifying installation and reducing the need for additional power cables. In addition, it has 2 Uplink GbE ports and 2 Uplink Combo ports, facilitating connection to the main network and ensuring fast and stable data transfer at all times.
This switch features comprehensive management features, including SNMP and web management, VLAN, QoS, trunk ports, and STP/RSTP loop protection. DHCP and IGMP snooping, along with the ability to manage PoE priority and extended mode and VLAN configuration, offer precise control over the network, optimizing performance and security. Its desktop or rack-mount design, along with intelligent fan cooling, ensures efficient and quiet operation in high-demand environments.
With a power of 300W, this device supports the power of multiple PoE devices with a maximum of 30W per port, allowing a flexible and scalable implementation. Its advanced technical specifications, such as a switching capacity of 56 Gbps, a forwarding rate of 41,664 Mpps and support for 15 KB Jumbo Frames, ensure superior performance in high-speed networks. In addition, its robust construction, compatibility with IEEE standards, and traffic management and security functions make this switch a reliable and efficient option to boost your business network infrastructure.
Features:
-24 GbE with PoE 802,3at/af
-2× Uplink GbE + 2× Uplink Combo
-300 W power supply
-PoE management per port
-Web administration, SNMP
-VLAN, QoS, trunk port, etc.
-DHCP Snooping, IGMP Snooping
-STP/RSTP and loop prevention
-Cooling with smart fan
-Desk, rack mount
-440×220×44mm (17,32×8,66×1,73)
Specifications:
-RJ45/SFP Gigabit Combo Ports: 2
-RJ45 Gigabit ports: 26
-PoE RJ45 Gigabit ports: #1~#24
-Maximum power on a single PoE port: 30W
-Notes on PoE ports: PoE ports comply with IEEE 802,3at/af standards.
-PoE priority: Configurable. If priority is not configured, ports with lower numbers have higher priority.
-Shielded RJ45 port: True
-Extended mode: Configurable
-VLAN Mode: Configurable
-LED: Power status / PoE status of each PoE port / Link/ACT of each Ethernet port / Maximum PoE status
-Power interfaces: AC input
-Physical buttons: Reset button
-Notes on physical buttons: The PoE watchdog will attempt to restart connected clients that have been idle for 5 minutes. Customize the wait time in web management to avoid harming customers with the online auto-update feature.
-Copper speed and distance: Cat. 3 or higher cable: 100 meters at 10Mbps / Cat. 5 or higher cable: 100 meters at 100Mbps / Cat. 5e or higher cable: 100 meters at Gigabit / Cat. 5e or higher cable: 250 meters at 10 Mbps
-Copper speed and distance notes: 250 meters transmission is available when the port speed is set to 10Mbps in the software.
-Specifications and optical distance: Depends on the optical module installed
-MAC address table: 8192
-Maximum switching capacity: 56 Gbps
-Maximum forwarding rate: 41,664 Mpps
-Jumbo Frame: 15 KB
-Packet buffer: 4 Mbit
-Power methods: AC
-Power input: 100-240V~ 50/60Hz
-Power supply: 300W
-Maximum power without PoE: 20W
-802,3 protocols: Flow control 802,3x / 10BASE-T 802,3i / 100BASE-TX 802,3u / 1000BASE-T 802,3ab / 1000BASE-X 802,3z / Power saving 802,3az / PoE 802,3af / PoE 802,3at
-Protocols 802,1: 802,1d: STP / 802,1w: RSTP / 802,1p: QoS/CoS at layer 2 LAN / 802,1q: VLAN bridge operation / 802,1ab: LLDP/LLDP-MED
-Port Management: Port Power On/Off / Port Speed Negotiation / Port Trunk (Static Aggregation) / Port Mirroring / Data Rate Limiting / Jumbo Frame Configuration / Storm Control / Traffic Monitor / MAC Address Management / EEE (802,3az)
-PoE Management: PoE Priority / PoE Watchdog On/Off / PoE Watchdog Packet Period/Threshold / Power Consumed by PoE / PoE Standard / PoE Delivery with Delay / PoE Total Power Limit / PoE Power Limit
-Port mirror sessions: 4
-Port trunk groups: 4
-Maximum number of ports per trunk group: 8
-L2 Functions: IGMP Snooping / Loop Prevention / DHCP Snooping / STP/RSTP / Configuration and
