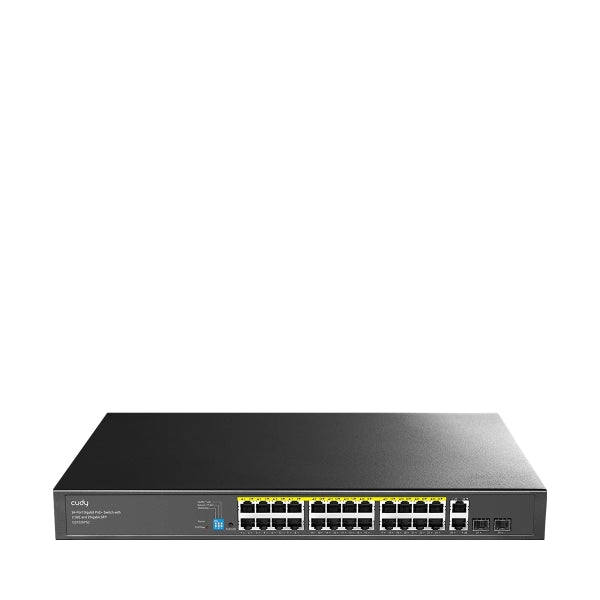

Cudy Switch 28 Ports - 56Gbps Switching Capacity - 24x RJ45 PoE+ - 2x RJ45 GbE - 2x Gigabit SFP - Automatic Restart - LED Indicators - 440x180x44mm - Black Color

This 26-port Gigabit Ethernet rack-mounted PoE switch is the ideal solution for enterprise networks that require performance, reliability, and efficient power management. With 24 PoE ports that comply with IEEE 802,3at/af standards, it allows simultaneous powering of devices such as surveillance cameras, wireless access points and VoIP phones, simplifying infrastructure and reducing cabling costs. In addition, it has 2 GbE Uplink ports and 2 1,25G SFP ports for high-speed connections and flexible expansion, adapting to the needs of growing networks.
This equipment stands out for its 300W power supply and a cooling system with an intelligent fan that adjusts its speed in real time according to energy consumption, guaranteeing stable and efficient operation. It includes advanced features such as intelligent PoE management, LED indicators per port, VLAN mode and Extension mode on specific ports, as well as physical buttons for direct control. Its rack-format design and compact dimensions (440×180×44 mm) facilitate its integration into professional environments, offering switching performance of up to 56Gbps and the ability to manage up to 2,048 MAC addresses.
Built with highly durable metal materials and with EMS certifications that ensure resistance to electrostatic discharges and surges, this switch is a robust and safe option for critical networks. Its compatibility with different feeding methods and its wide operating temperature range make it suitable for various environments. In short, a powerful, efficient and easy-to-manage PoE switch, designed to optimize and expand your network infrastructure with confidence and performance.
Features:
-24 GbE with PoE 802,3at/af
-2× GbE Uplink + 2× SFP Uplink
-300 W power supply
-Guard dog
-Surveillance activated/deactivated
-PoE Max, PoE LED per port
-Cooling with smart fan
-Desk, rack mount
-440×180×44mm (17,32×7,09×1,73\'\')
Specifications:
-1,25G SFP slots: 2
-Gigabit RJ45 ports: 26
-Gigabit RJ45 PoE ports: #1~#24
-Maximum power on a single PoE port: 30W
-Notes on PoE ports: PoE ports comply with IEEE 802,3at/af standards.
-PoE Priority: Intelligent Power Management: Automatically disconnects the most recently powered device when consumption exceeds budget.
-Shielded RJ45 port: True
-Ports in Extension mode: #17~#24
-Ports in VLAN mode: #1~#24
-LED: Power status / PoE status of each PoE port / Link/ACT of each Ethernet port / PoE Max status
-Power interfaces: AC input
-Physical buttons: Extended On/Off / VLAN On/Off / PoE Watchdog On/Off / PoE LED Toggle
-Note on physical buttons: The PoE Watchdog will attempt to restart connected clients that have been idle for 5 minutes. Do not activate it for clients with automatic online update function.
-Speed and distance with copper: Cat. 3 or higher cable: 100 meters at 10Mbps / Cat. 5 or higher cable: 100 meters at 100Mbps / Cat. 5e or higher cable: 100 meters at Gigabit / Cat. 5e or higher cable: 250 meters at 10 Mbps
-Note on speed and distance with copper: 250 meter transmission is only available on ports in Extension mode when this mode is activated.
-Optical specifications and distance: Depends on the optical module installed
-MAC address table: 2048
-Maximum switching capacity: 56 Gbps
-Maximum forwarding rate: 41,664 Mpps
-Jumbo Frame: 15 KB
-Packet buffer: 3 Mbit
-Power methods: AC
-Power input: 100-240V~ 50/60Hz
-Power supply: 300W
-Maximum power without PoE: 20W
-802,3 protocols: 802,3i 10BASE-T / 802,3u 100BASE-TX / 802,3ab 1000BASE-T / 802,3z 1000BASE-X / 802,3x Flow control / 802,3af PoE / 802,3at PoE
-PoE Management: Intelligent energy management
-Fans: 1
-Fan Note: Intelligent Cooling: Fan speed is adjusted in real time based on power consumption.
-Grounding methods: Three-prong plug
-EMS: IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV, Air: 8kV IEC/EN 61000-4-5, Level 4 Overvoltage: Power: DM 2kV, CM 4kV, RJ45: CM 4kV
-Environment: Operating temperature: 0~40 ℃ (32~104 ℉) Storage temperature: -40~70℃ (-40~158 ℉) Operating humidity: 10~90% without condensation Storage humidity: 10~95% without condensation
-Dimensions: 440×180×44mm 17,32×7,09×1,73 inches
-Product weight: 2349,0g (82,86 oz.)
-Shell material: Metal
-Installation: Desktop / Rack mounting using brackets
