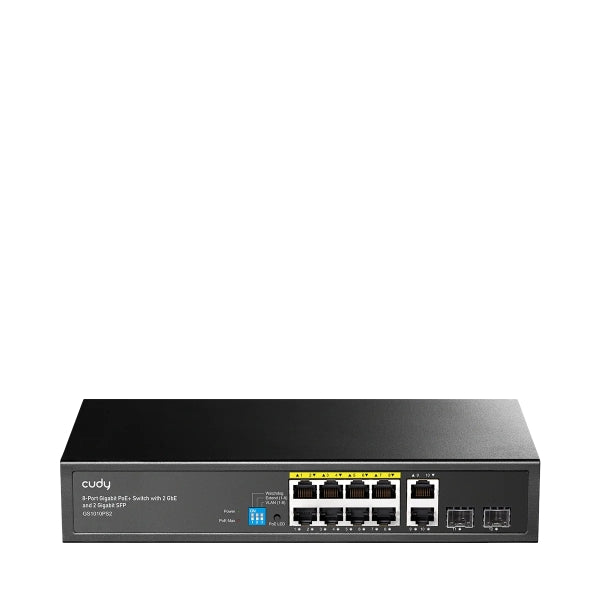

Cudy Switch 12 Ports - 24Gbps Switching Capacity - 8x RJ45 PoE+ - 2x RJ45 GbE - 2x Gigabit SFP - Automatic Restart - LED Indicators - 256x170x44mm - Black Color

This Gigabit PoE switch is the perfect solution for business networks that require performance, efficiency, and easy installation. With 8 Gigabit RJ45 ports in PoE mode (802,3at/af), it allows you to power connected devices such as surveillance cameras, wireless access points and VoIP phones, simplifying infrastructure and reducing costs on additional cabling. In addition, it has 2 Gigabit Uplink ports and 2 1,25G SFP ports, offering flexibility for high-speed connections and long-distance links, ideal for environments that demand fast and reliable data transmission.
This switch stands out for its 120W power supply, which provides enough power to support multiple PoE devices simultaneously, with a maximum of 30W per port. It includes advanced features such as intelligent power management, which automatically prioritizes and disconnects devices when the power budget is exceeded, and a silent cooling system that ensures noise-free operation. Its indicator LEDs allow you to monitor the power, PoE and link status in real time, facilitating the management and maintenance of the equipment.
Built in a sturdy metal casing and with compact dimensions (256×170×44 mm), this switch can be easily installed on desks or racks using brackets (not included). Its robust design meets protection and compatibility standards, supporting environments with operating temperatures from 0 to 40 ℃ and controlled humidity. With a switching capacity of 24Gbps and a forwarding rate of 17,856 Mpps, it guarantees optimal performance for high-demand networks, making this equipment a reliable and efficient option for any modern network infrastructure.
Features:
-8× GbE with PoE mode 802,3at/af A
-2× GbE Uplink + 2× SFP Uplink
-120W power supply
-Guard dog
-Surveillance activated/deactivated
-PoE Max, PoE LED per port
-256×170×44mm (10,08×6,69×1,73)
Specifications:
-2 1,25G SFP slots
-10 Gigabit RJ45 ports
-8 Gigabit RJ45 PoE ports
-Maximum power on a single PoE port: 30W
-Notes on PoE ports: PoE ports comply with IEEE 802,3at/af standards.
-PoE Priority: Intelligent Power Management: Automatically disconnects the most recently powered device when the power budget is exceeded.
-Shielded RJ45 port: True
-Ports in Extension mode: #1~#8
-Ports in VLAN mode: #1~#8
-LED: Power status / PoE status of each PoE port / Link/Activity of each Ethernet port / PoE Max status
-Power interfaces: AC input
-Physical buttons: Extension On/Off / VLAN On/Off / PoE Watchdog On/Off / Toggle PoE LED
-Note on physical buttons: The PoE watchdog will attempt to restart connected clients that have been idle for 5 minutes. Do not activate it for clients with automatic online update function.
-Copper speed and distance: Cat. 3 or higher cable: 100 meters at 10Mbps / Cat. 5 or higher cable: 100 meters at 100Mbps / Cat. 5e or higher cable: 100 meters at Gigabit / Cat. 5e or higher cable: 250 meters at 10 Mbps
-Copper speed and distance note: 250 meter transmission is only available on ports in Extension mode when this mode is activated.
-Specifications and optical distance: Depends on the optical module installed
-MAC address table: 2048
-Maximum switching capacity: 24 Gbps
-Maximum forwarding rate: 17,856 Mpps
-Jumbo Frame: 15 KB
-Packet buffer: 3 Mbit
-Power methods: AC
-Power input: 100-240V~ 50/60Hz
-Power supply: 120W
-Maximum power without PoE: 10W
-802,3 protocols: 802,3i 10BASE-T / 802,3u 100BASE-TX / 802,3ab 1000BASE-T / 802,3z 1000BASE-X / 802,3x Flow control / 802,3af PoE / 802,3at PoE
-PoE Management: Intelligent energy management
-Grounding methods: Three-prong plug
-EMS: IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV, Air: 8kV IEC/EN 61000-4-5, Level 4 Overvoltage: Power: DM 2kV, CM 4kV, RJ45: CM 4kV
-Ambient: Operating temperature: 0~40 ℃ (32~104 ℉) Storage temperature: -40~70℃ (-40~158 ℉) Operating humidity: 10~90% without condensation Storage humidity: 10~95% without condensation
-Dimension: 256×170×44mm 10,08×6,69×1,73 inches
-Product weight: 935,1g (32,98 oz.)
-Shell material: Metal
-Installation: Desktop / Rack mounting using brackets (brackets are not included in the box)
