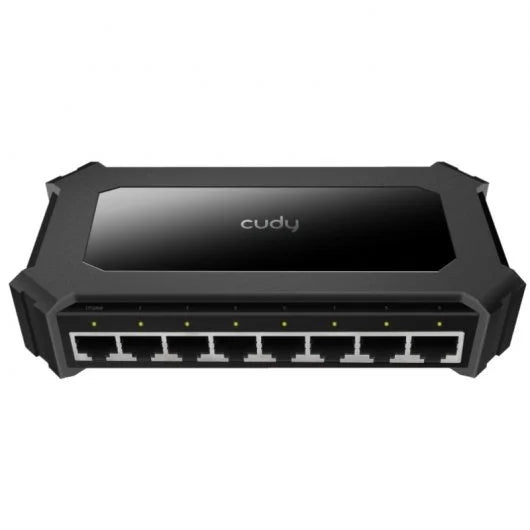

Cudy GS108D Switch 8 Gigabit Ports 10/100/1000 Mbps

Plug and play, hassle-free, no configuration required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port detects a network device's link speed (10/100/1000 Mbps) and intelligently adjusts for optimal compatibility and performance.
High performance.
The auto-negotiating RJ-45 ports can provide large file transfer and also be compatible with any 10/100/1000 Mbps Ethernet device. With non-blocking switching architecture, the product forwards and filters packets at full wire speed for maximum performance. IEEE 802,3x flow control for Full Duplex mode and backpressure for Half Duplex mode offer higher bandwidth to relieve network congestion, making the switch work reliably.
Gigabit ports for greater speed.
Increase the speed of your network with the 8-port Gigabit switch. 8 non-blocking 10/100/1000 Mbps ports allow instant transfer of large, bandwidth-intensive files without interference.
Smooth online experience.
The switch connects up to 8 devices with a speed of up to 1000 Mbps. It gives you an extremely smooth experience to enjoy a powerful, smooth, affordable and easy-to-use 1000 Mbps network, ideal for multimedia, graphics, HD video and other applications that require a large transfer allocation.
Energy efficiency and energy savings.
Automatically adjusts power consumption according to link status and cable length. This Gigabit desktop switch features innovative energy-efficient technologies that can greatly expand your network capacity with much less power.
Features:
-8 10/100/1000Mbps auto-negotiation RJ45 ports supporting Auto-MDI/MDIX
-Standard IEEE 802,3, IEEE 802,3u, IEEE802,3x, IEEE 802,3ab
-Supports self-learning and automatic aging of MAC addresses
- Non-blocking switching architecture enables full wire-speed packet forwarding and filtering
-Cudy green technology saves energy up to 85%
-Plug & Play, desktop design
Specifications:
Connection:
-Network standards: IEEE 802,3, IEEE 802,3ab, IEEE 802,3az, IEEE 802,3u, IEEE 802,3x
-Copper Ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
-Supported cable types: Cat3, Cat4, Cat5, Cat5e, Cat6
-Complete bidirectional (Full duplex): Yes
-Half-duplex transmission: Yes
-Flow control support: Yes
-Auto MDI / MDI-X: Yes
-Ethernet LAN, data transfer speed: 10,100,1000 Mbit/s
-Auto-negotiation: Yes
-Supports MAC address auto-learning: Yes
-Supports MAC address auto-aging: Yes
Ports and Interfaces:
-Number of basic RJ-45 Ethernet switching ports: 8
-Basic RJ-45 Ethernet switching type ports: Gigabit Ethernet (10/100/1000)
Data transmission:
-Switching capacity: 16 Gbit/s
-Save and forward: Yes
- Packet redirection speed (1 Gbps): 1488000 pps
- Packet redirection speed (100 Mbps): 148800 pps
- Packet redirection speed (10 Mbps): 14880 pps
Design:
-Rack mounting: No
-Product color: Black
-LED Indicators: Activity, Link, Power
Power control:
-Power source: DC
-Power supply included: Yes
-DC input voltage: 5 V
-Input current: 1 A
-Power consumption (max): 2,3 W
Power over Ethernet (PoE):
-Power over Ethernet (PoE): No
Environmental conditions:
-Operating temperature range: 0 - 40 °C
-Storage temperature range: -40 - 70 °C
-Relative humidity range for operation: 10 - 90%
-Relative humidity range during storage: 5 - 95%
Weight and dimensions:
-Width: 143 mm
-Depth: 72,7 mm
-Height: 26,9 mm
-Weight: 215 g
