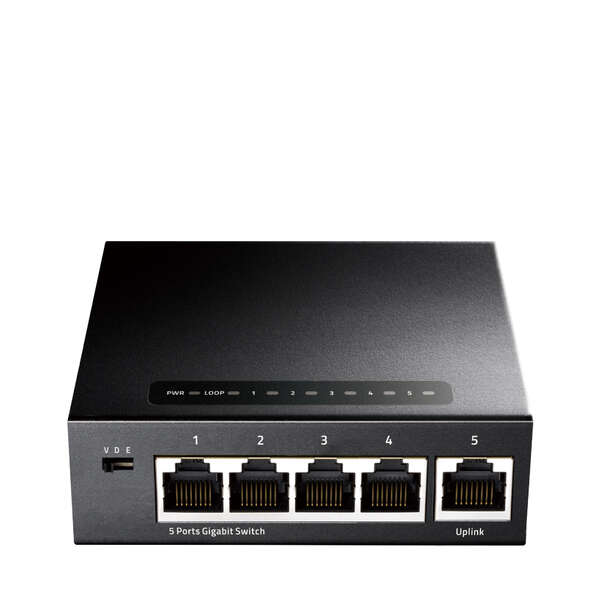

Cudy GS105 Switch 5 Adaptive Gigabit Ports 10/100/1000 Mbps

Cudy GS105 Switch 5 Gigabit Ports 10/100/1000 Mbps
Gigabit ports for greater speed.
Increase the speed of your network with the 5-port Gigabit switch. The 5 non-blocking 10/100/1000 Mbps ports allow instant transfer of large, bandwidth-intensive files without interference.
High performance.
The auto-negotiating RJ-45 ports can provide large file transfer and also be compatible with any 10/100/1000 Mbps Ethernet device. IEEE 802,3x flow control for Full Duplex mode and backpressure for Half Duplex mode offer higher bandwidth to alleviate switch operation reliably.
Support loop alarm.
The auto-negotiating RJ-45 ports can provide large file transfer and also be compatible with any 10/100/1000 Mbps Ethernet device. IEEE 802,3x flow control for Full Duplex mode and backpressure for Half Duplex mode offer higher bandwidth to alleviate switch operation reliably.
Surveillance
Works with IP cameras for home and office, small businesses.
VoIP conference call
Works with VoIP phones for business conferences.
WiFi coverage
Works with WiFi access points for offices and businesses.
Features:
-Complies with IEEE 802,3, IEEE 802,3u, IEEE802,3x and IEEE 802,3ab standards
-5 Auto-MDI/MDIX ports with 10/100/1000 Mbps auto-negotiation provide intelligent switching between 10 Mbps, 100 Mbps and 1000 Mbps hardware
-Non-blocking switching architecture enables full wire-speed packet forwarding and filtering.
-Store and forward switching method.
Specifications:
Connection:
-Network standards: IEEE 802,3, IEEE 802,3ab, IEEE 802,3u, IEEE 802,3x
-Copper Ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-TX
-Supported cable types: Cat3, Cat4, Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e, Cat8, Cat8,1
-Half-duplex transmission: Yes
-Supports MAC address auto-aging: Yes
-VLAN Support: Yes
Ports and Interfaces:
-Number of basic RJ-45 Ethernet switching ports: 5
-Basic RJ-45 Ethernet switching type ports: Gigabit Ethernet (10/100/1000)
Data transmission:
-MAC address table: 1000 entries
-Switching capacity: 10 Gbit/s
-Performance: 7,44 Mpps
-Save and forward: Yes
-Jumbo Frames, support: Yes
-Jumbo Plots: 2000
-Package buffer: 1 MB
Design:
-Rack mounting: No
-Product color: Black
-LED Indicators: Activity, Link, Power
Power control:
-Power source: AC/DC
-Power supply included: Yes
-AC input voltage: 100 - 240 V
-DC input voltage: 5 V
Power over Ethernet (PoE):
-Power over Ethernet (PoE): No
Environmental conditions:
-Operating temperature range: 0 - 40 °C
-Storage temperature range: -40 - 70 °C
-Relative humidity range for operation: 10 - 90%
-Relative humidity range during storage: 5 - 95%
Weight and dimensions:
-Width: 100 mm
-Depth: 70 mm
-Height: 26 mm
-Weight: 200 g
