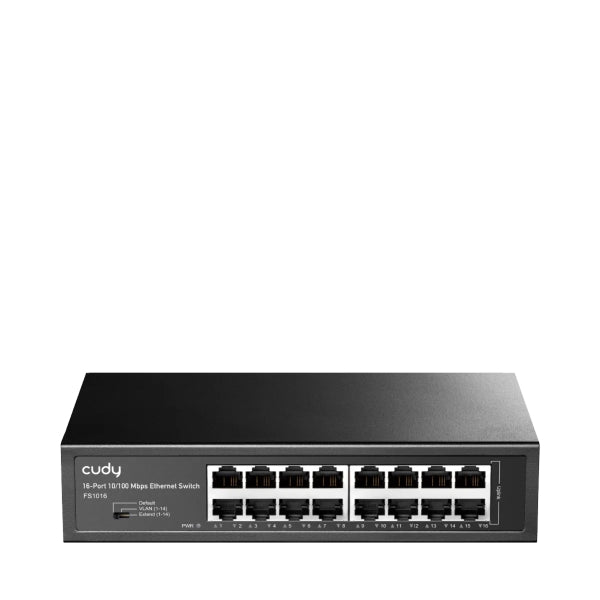

Cudy FS1016 Switch 16 Ports 10/100 Mbps

Plug and play, hassle-free, no configuration required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port detects a network device's link speed (10/100 Mbps) and intelligently adjusts for optimal compatibility and performance.
Auto-negotiating RJ-45 ports can provide large file transfer and also support
with any 10/100 Mbps Ethernet device. With non-blocking switching architecture, the product forwards and filters packets at full wire speed for maximum performance. IEEE 802,3x flow control for Full Duplex mode and backpressure for Half Duplex mode offer higher bandwidth to relieve network congestion, making the switch work reliably.
10/100 Mbps ports for greater speed.
Increase the speed of your network with the 16-port switch. The 16 non-blocking 10/100 Mbps ports allow instant transfer of large, bandwidth-intensive files without interference.
Smooth online experience.
The switch connects up to 16 devices with a speed of up to 100Mbps (Half Duplex)/200Mbps (Full Duplex). It provides you with an extremely smooth experience to enjoy a powerful, smooth, affordable and easy-to-use network, ideal for multimedia, graphics, HD video and other applications that require a large transfer allocation.
Energy efficiency and energy savings.
Automatically adjusts power consumption according to link status and cable length. This Gigabit desktop switch features innovative energy-efficient technologies that can greatly expand your network capacity with much less power.
Features:
-16 10/100Mbps auto-negotiation RJ45 ports supporting Auto-MDI/MDIX
-Complies with IEEE 802,3, IEEE 802,3u, IEEE802,3x standards
-Supports self-learning and automatic aging of MAC addresses
-Supports IEEE802,3x flow control for full duplex
-Mode and backpressure for Half-duplex mode
-Plug & Play, desktop design
Specifications:
Connection:
-Network standards: IEEE 802,3, IEEE 802,3u, IEEE 802,3x
-Copper Ethernet cabling technology: 10BASE-T, 100BASE-TX
-Supported cable types: Cat3, Cat4, Cat5, Cat5e
-Complete bidirectional (Full duplex): Yes
-Half-duplex transmission: Yes
-Auto MDI / MDI-X: Yes
-Auto-negotiation: Yes
Ports and Interfaces:
-Number of basic RJ-45 Ethernet switching ports: 16
-Basic RJ-45 Ethernet switching type ports: Fast Ethernet (10/100)
Data transmission:
-Switching capacity: 1,6 Gbit/s
-MAC address table: 2 entries
Design:
-Product color: Black
-LED indicators: LAN, Power
Power control:
-Power source: DC
-Power supply included: Yes
-DC input voltage: 5 V
-Input current: 1 A
Environmental conditions:
-Operating temperature range: 0 - 40 °C
-Storage temperature range: -40 - 70 °C
-Relative humidity range for operation: 10 - 90%
-Relative humidity range during storage: 5 - 95%
Weight and dimensions:
-Width: 138 mm
-Depth: 103 mm
-Height: 35 mm
-Weight: 228 g
