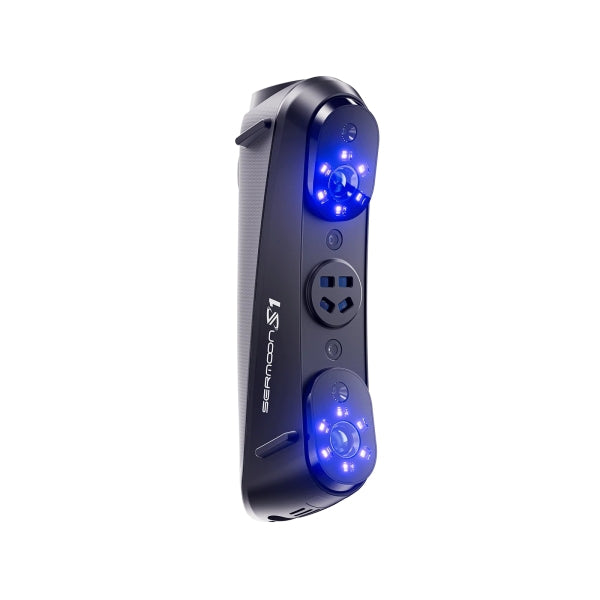

Creality Sermoon S1 3D Scanner - 1 Main Laser + 7 Parallel Blue Lasers + 34 Cross Blue Lasers + NIR Laser for Superior Detail Capture - Speed up to 90fps - Precision up to 0,02mm - Objects between 0,2mm and 4000mm - Stereo Vision

The Sermoon S1 is a scanner Professional 3D with hybrid system of 1+7+34 blue and NIR lasers, precision up to 0,02 mm and ultra-fast scanning at 90 FPS. Capture objects from 5mm to 4000mm without the need for spray or markers. Equipped with 4-lens stereo vision, intelligent thermal compensation and CrealityScan 4,0 software. Ideal for complex scans, dark or reflective surfaces, and outdoor environments. Seamless integration with CAD, CAM and 3D printing. Weighing 508 grams and measuring 225 x 53 x 76 mm, they make it a light and easily manageable device.
With an advanced optical configuration and modular architecture, the Sermoon S1 integrates multiple laser projection systems (1 main, 7 auxiliary and 34 blue), along with NIR illumination and four-lens stereo vision. It reaches a point precision of 0,02 mm and works at a scanning speed of up to 90 FPS, capable of capturing objects from 5 mm up to 4000 mm.
Scanning accuracy and speed
The Sermoon S1 achieves a surface precision of 0,02 mm and a volumetric precision of 0,08 mm/m, combining high-definition laser projection with a stereo optical system. Its fast scanning at 90 FPS and wide field of view allow you to digitize large areas while maintaining the level of detail.
Optimized multi-light system
It integrates an advanced set of laser sources: 1 main laser, 7 blue light modules, 34 additional blue lasers and NIR laser. This setting allows you to capture complex geometries and accurate colors even on reflective, dark or metallic finished materials.
Adaptive scan range
Capable of scanning objects from 5 mm to 4000 mm, it offers wide coverage for both small parts and large volume items. Its 4-lens stereo vision system allows you to scan outdoors without markers or spray, maintaining precision on every job.
Smart features and advanced connectivity
It incorporates AI for data processing, automatic thermal compensation and the possibility of wireless control using the Scan Bridge module (optional). Its compatibility with CAD/CAM software and 3D printing allows it to be directly integrated into technical and demanding work environments.
Specifications:
-Light sources: 1 main laser + 7 modules + 34 blue lasers + NIR laser
-Point precision: 0,02 mm
-Volumetric precision: 0,02 mm + 0,08 mm/m
-Scan speed: up to 90 FPS
-Maximum field of view (blue laser): 506 mm × 433 mm to 600 mm
-Maximum field of view (NIR): 1245 mm × 754 mm at 1000 mm
-Weight: 508 g
-Measurements: 225 x 53 x 76 mm
-Scan range: from 5 mm to 4000 mm
-Compatibility: Windows, macOS, Android, iOS
-Wireless operation: available with Scan Bridge accessory (not included)
-Software included: CrealityScan 4,0 with AI and guided work environment
-Color reproduction: High definition
-Scanning without markers or spray
-Outdoor/indoor scanning capability under different light conditions
-Operating Temperature -10 °C to 40 °C
-Operating Humidity 10-90%RH
