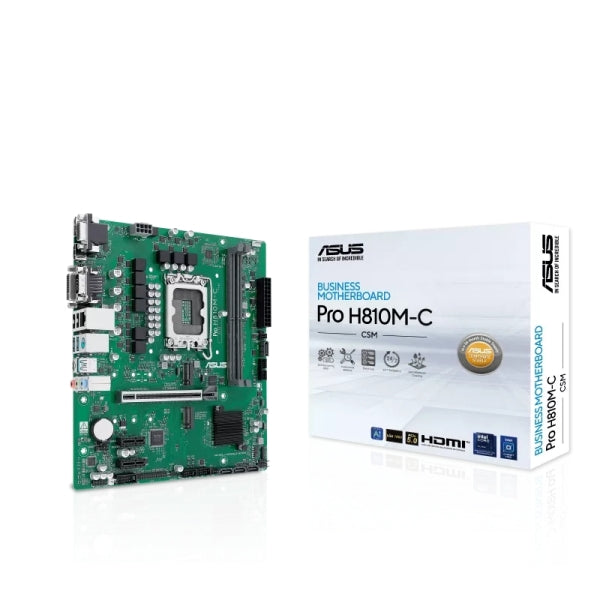

Asus Pro H810M-C CSM Motherboard 2x DDR5, M.2, PCIe 4.0, Sata III, MicroATX

ASUS Pro business motherboards offer enhanced features to optimize your IT operations, including comprehensive system protection, 24/7 stability and reliability, and a streamlined management suite for easier customization. Known as the world's largest and most recognized motherboard brand, ASUS offers first-class after-sales service and guaranteed long-term availability to maximize your investment throughout its lifecycle, delivering a high-quality solution with an optimized total cost of ownership for your business computing needs.
Micro-ATX H810 business motherboard with enhanced security, reliability, manageability, and serviceability
Ready for advanced AI PCs: designed for the future of AI computing, with the power and connectivity needed for demanding AI applications.
Intel LGA 1851 socket: ready for Intel Core Ultra processors (Series 2)
ASUS CSM program: Stable motherboard supply, end-of-life notifications, and IT software for business motherboards
ASUS Control Center Express: integrated IT management and monitoring software that simplifies enterprise-level system administration
Enhanced system security: BIOS with automatic recovery to protect PCs
Consistent, reliable performance: high-quality components and rigorous testing to help ensure durability in harsh environments.
Efficient management and customization: an event log and a business BIOS kit for easy maintenance
Better serviceability: Q-LED Core diagnostic display and COM debug header to make build and support processes easier
Ultra-fast connectivity: PCIe 5.0 slot, two PCIe 4.0 M.2 slots, DDR5, rear 10 Gbps USB Type-A and Type-C
User-friendly design: SafeSlot, dual DIMM clips, chassis connectors
Specifications
Processor:
-Compatible with Intel Core Ultra processors (Series 2), LGA1851*
-Compatible with Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
Chipset:
-Intel H810 Chipset
Memory:
-2 x DIMM slots, max. 128 GB, DDR5
-Supports up to 6400 MT/s, non-ECC, unbuffered, Clocked Unbuffered DIMM (CUDIMM)*
-Dual-channel memory architecture
-DIMM Fit
-Compatible with Intel Extreme Memory Profile (XMP) memory modules
-ASUS Enhanced Memory Profile II (AEMP II)
Slots:
-1 x PCIe 5.0 x16 slot
-2 x PCIe 4.0 x1 slots
Graphics:
-1 x DisplayPort**
-1 x VGA port
-1 x DVI-D port
-1 x HDMI port***
Storage:
-Supports a total of 2 x M.2 slots and 4 x SATA 6Gb/s ports
-M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
-M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2)
-4 x SATA 6Gb/s ports
USB:
-2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C)
-2 x USB 5Gbps ports (2 x Type-A)
-2 x USB 2.0 ports (2 x Type-A)
-1 x USB 5Gbps header for 2 additional USB 5Gbps ports
-2 x USB 2.0 headers for 4 additional USB 2.0 ports
Audio:
-Realtek 7.1 Surround Sound High Definition Audio CODEC*
-Supports: jack detection, multi-streaming, front panel jack retasking
-Supports playback up to 24-bit/192 kHz
Connectivity and networking:
-1 x Intel 1Gb Ethernet port*
-ASUS LANGuard
Internal connectors:
-1 x 4-pin CPU fan connector
-2 x 4-pin chassis fan connectors
-1 x 24-pin main power connector
-1 x 8-pin +12V CPU power connector
-2 x M.2 slots (Key M)
-4 x SATA 6Gb/s ports
-1 x USB 5Gbps connector for 2 additional USB 5Gbps ports
-2 x USB 2.0 connectors for 4 additional USB 2.0 ports
-1 x Clear CMOS connector
-1 x chassis intrusion connector
-1 x COM port connector
-1 x front panel audio connector (F_AUDIO)
-1 x COM debug connector
-1 x LPT connector
-1 x mono audio output connector (with built-in amplifier)
-1 x SMBUS connector
-1 x speaker connector
-1 x TPM SPI connector (14-1 pin)
-1 x front panel system connector (10-1 pin)
Rear connectors:
-2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C)
-2 x USB 5Gbps ports (2 x Type-A)
-2 x USB 2.0 ports (2 x Type-A)
-1 x DisplayPort
-1 x VGA port
-1 x DVI-D port
-1 x HDMI port
-1 x Intel 1Gb Ethernet port
-3 x audio connectors
-1 x COM port
-1 x PS/2 keyboard/mouse combo port
Form factor:
-MicroATX
