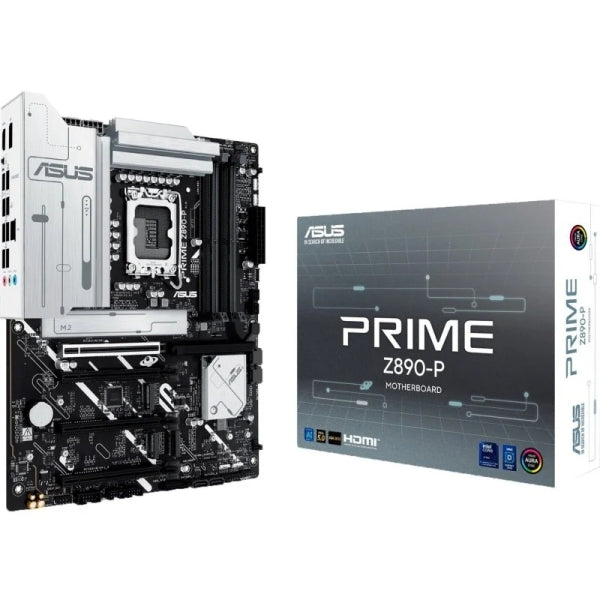

Asus Prime Z890-P LGA 1851 Motherboard - HDMI, DisplayPort, PCIe 4.0 and 5.0, M2, 4x Sata III, USB 2.0, 3.2, USB-C, RJ-45

ASUS PRIME series motherboards are expertly designed to unleash the full potential of the latest Intel Core Ultra processors (Series 2). With a robust power design, comprehensive cooling solutions, and smart tuning options, the PRIME Z890-P motherboard gives users and PC builders a range of performance optimizations through intuitive software and firmware features. It is designed to be compatible with advanced AI PCs, offering the power and connectivity needed for demanding AI applications.
AI Solutions.
ASUS AI Solutions include AI Advisor as your expert technical advisor with PC performance expertise, AI Networking II for real-time bandwidth optimization, and AI Cooling II for automated temperature control.
NPU Boost.
The NPU built into Intel Core Ultra (Series 2) processors efficiently accelerates AI workflows, and NPU Boost lets you do more with it. This BIOS feature accelerates the NPU with a single click, boosting performance by up to 24%.
Robust power design.
Stable power is crucial to maximizing the performance of Intel Core Ultra (Series 2) processors. The PRIME Z890-P is designed to meet the needs of high-core-count CPUs. It features 14(80A) + 1(80A) + 2(80A) + 1(80A) power stages that integrate high- and low-side MOSFETs and controllers in packages rated for up to 80 amps each. This configuration ensures optimal power delivery, efficiency, stability, and performance for current and future Intel processors.
AEMP III for maximum DDR5 memory performance.
ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that lets users achieve unmatched memory performance with the latest generation CUDIMM memory. Through a comprehensive two-stage tuning process, AEMP III first optimizes the clock controller and then the memory frequency. This results in the best balance between performance and stability, even at cutting-edge DDR5-7600 speeds or higher.
DIMM Fit.
DIMM Fit is an exclusive ASUS BIOS feature that precisely analyzes individual memory modules to optimize performance and detect potential issues. This delivers maximum efficiency, compatibility, and system stability. Whether you're an overclocker chasing maximum performance, a competitor seeking the best gaming response, or a content creator who prioritizes rock-solid stability, DIMM Fit provides optimizations tailored to your needs and hardware configuration.
Four M.2 slots (up to 128 Gbps).
The PRIME Z890-P offers a total of four M.2 slots, including one supporting data transfer speeds of up to 128 Gbps via PCIe 5.0 and three supporting 64 Gbps via PCIe 4.0. This enables faster boot times and application loading with OS or application drives.
Cooler by design.
The PRIME Z890-P motherboard is designed with multiple built-in heatsinks and a variety of hybrid fan connectors to help keep your system cool and stable under intense workloads.
ASUS Fan Xpert 4.
ASUS Fan Xpert 4 software offers full control of fans and AIO coolers. Auto-Tuning mode configures settings with a single click, while Extreme Quiet mode reduces fan speed for silent operation during light tasks. Controls are also available through the UEFI BIOS.
Cooler compatibility.
ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics, and customizable functionality for new motherboards, letting you build the gaming rig of your dreams
PCIe 5.0 slot
The latest processors introduce PCIe 5.0 support, doubling data transfer speeds compared to PCIe 4.0, improving signal integrity, and providing backward-compatible CEM connectors and support for previous PCIe versions.
Customization. PRIME Z890-P improves the user experience in every way, from simplifying BIOS setup to offering customizable RGB lighting controls for a uniquely personal system look.
PCIe Q-Release slot.
A physical lever unlocks the safety latch of the first PCIe slot with a single touch, greatly simplifying the process of detaching a PCIe card from the motherboard when it's time to upgrade to a new graphics card or other compatible device.
Specifications:
Processor:
-Processor manufacturer: Intel
-Processor socket: LGA 1851 (Socket V1)
-Compatible processor: Intel Core Ultra (Series 2)
Memory:
-Compatible memory types: DDR5-SDRAM
-Number of memory slots: 4
-Memory slot type: DIMM
-Memory channels: Dual channel
-ECC compatibility: Non-ECC
-Maximum supported memory clock speed: 7600 MHz
-Maximum internal memory: 192 GB
-Unbuffered memory: Yes
Storage controllers:
-Supported storage drive types: HDD & SSD
-Supported storage disk interfaces: M.2, SATA III
-Number of supported HDDs: 4
-Number of compatible storage drives: 8
-RAID support: Yes
-RAID levels: 0, 1, 5, 10
Graphics:
-Parallel processing support: Not supported
Internal I/O:
-USB 2.0 connectors: 2
-USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
-USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
-Number of SATA III connectors: 4
-S/PDIF output connector: Yes
-Front panel audio connector: Yes
-ATX power connector (24-pin): Yes
-CPU fan connector: Yes
-Number of chassis fan connectors: 4
-EPS power connector (8-pin): Yes
-Number of COM connectors: 1
-TPM connector: Yes
-Thunderbolt headers: 1
-12V power connector: Yes
-RGB LED strip connector: Yes
Rear panel I/O ports:
-Number of USB 2.0 ports: 4
-Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
-Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports: 0
-Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 1
-Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 1
-Ethernet LAN (RJ-45) port count: 1
-Number of VGA (D-Sub) ports: 0
-Number of HDMI ports: 1
-HDMI version: 2.1
-Number of DVI-D ports: 0
-Number of DisplayPorts: 1
-DisplayPort version: 1.4
-Headphone outputs: 1
-Line input: Yes
Connectivity:
-Ethernet: Yes
-Ethernet interface type: 2.5 Gigabit Ethernet
-Wi-Fi: No
Features:
-Component for: PC
-Form factor: ATX
-Chipset family: Intel
-Chipset: Intel Z890
-Audio output channels: 7.1 channels
-Product color: Black
-Cooling type: Passive
-Power: ATX
-Supported Windows operating system: Windows 10, Windows 11
Expansion slots:
-PCI Express x16 (Gen 4.x) slots: 3
-PCI Express x16 (Gen 5.x) slots: 1
-Number of M.2 (M) slots: 4
BIOS:
-BIOS types: UEFI AMI
-BIOS memory size: 256 MB/s
Weight and dimensions:
-Width: 305 mm
-Depth: 244 mm
