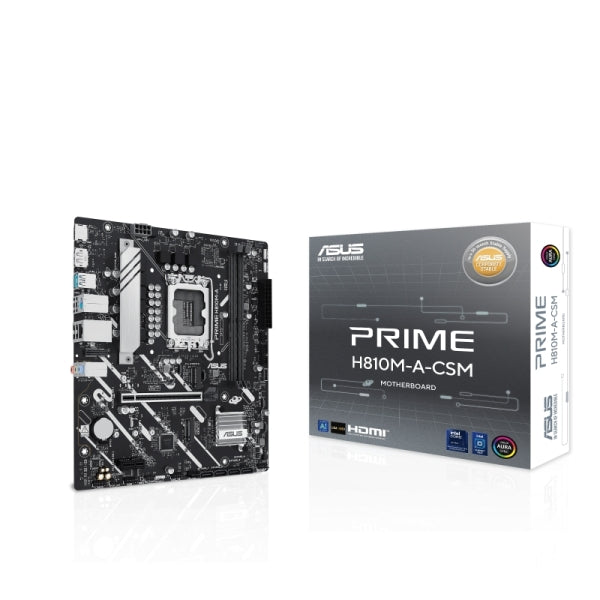

Asus Prime H810M-A-CSM Motherboard 2x DDR5, M.2, PCIe 4.0, Sata III, MicroATX

H810M-A-CSM
ASUS PRIME series motherboards are expertly designed to unleash the full potential of the latest Intel Core Ultra processors (Series 2). With a robust power design, comprehensive cooling solutions, and smart tuning options, the PRIME H810M-A-CSM motherboard gives users and PC builders a range of performance optimizations through intuitive software and firmware features. It is designed to be compatible with advanced AI PCs, offering the power and connectivity needed for demanding AI applications.
ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a business program designed to provide stable, reliable motherboards. It offers product lifecycle support for up to 36 months and a 6-month end-of-life notice to give your organization sufficient time to prepare for product transitions. Every purchase of an ASUS CSM motherboard includes ASUS Control Center Express, server-grade IT management software.
ASUS Control Center Express
ASUS Control Center Express is integrated IT management and monitoring software designed to deploy IT operations faster, simplify them, and improve productivity with comprehensive, user-friendly control features. ASUS Control Center Express supports over 100 ASUS motherboards to offer a high-quality, total-cost-of-ownership-optimized solution for your company's needs.
Digital power design
Stable power is crucial to maximizing the performance of Intel Core Ultra (Series 2) processors. The PRIME H810M-A-CSM features a 6+1+1+1 phase design with discrete MOSFETs, ensuring efficient, stable power delivery for Intel processors, plus consistent performance for everyday use.
DIMM Fit
DIMM Fit is an exclusive ASUS BIOS feature that precisely analyzes individual memory modules to optimize performance and detect potential issues. This delivers maximum efficiency, compatibility, and system stability. Whether you're an overclocker chasing maximum performance, a competitor seeking the best gaming response, or a content creator who prioritizes rock-solid stability, DIMM Fit provides optimizations tailored to your needs and hardware configuration.
Two M.2 slots (up to 64 Gbps)
The PRIME H810M-A-CSM offers a total of two M.2 slots, including one supporting data transfer speeds of up to 64 Gbps via PCIe 4.0 and another supporting 32 Gbps via PCIe 4.0. This enables faster boot times and application loading with OS or application drives.
ASUS Fan Xpert 2+
ASUS Fan Xpert 2+ software offers full fan control. An Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode that reduces chassis fan speed below the default minimum to keep the system absolutely silent during light tasks. Fans can also be controlled through the UEFI BIOS.
Boosting connections
This motherboard offers a versatile range of connectivity, including support for PCIe 4.0 M.2, a PCIe 4.0 slot, and an arsenal of USB ports including a Type-C connection.
High-speed transfer
Numerous USB ports support high-end setups loaded with peripherals, including two rear USB Type-A ports with transfer speeds of up to 10 Gbps and a front USB Type-C connector with ultra-fast 5 Gbps USB for transfer speeds of up to 5 Gbps.
Intel Gb Ethernet
The Intel Ethernet I219-V connection reduces CPU overhead and delivers exceptionally high TCP and UDP performance for faster, smoother data transfers.
Customization
The PRIME H810M-A-CSM improves the user experience in every way, from simplifying BIOS setup to offering customizable RGB lighting controls for a uniquely personal system look.
DIY-friendly
The PRIME H810M-A-CSM motherboard features EZ PC DIY innovations that simplify and speed up the PC-building process, making DIY easy and convenient.
SafeSlot Core+
SafeSlot Core+ is a one-piece stainless steel bracket that protects the slot from damage. The metal cover is firmly secured to the slot with hooks, and the entire assembly is firmly anchored to the PCB with reinforced solder points to provide a secure base for heavy graphics cards.
Specifications:
Processor
-Support Intel Core Ultra Processors (Series 2), LGA1851
-Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
-Chipset
-Intel H810 Chipset
Memory
-2 x DIMM slots, max. 128GB, DDR5
-Supports up to 6400MT/s, Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*
-Dual channel memory architecture
-DIMM Fit
-Supports Intel Extreme Memory Profile (XMP) memory module
-ASUS Enhanced Memory Profile II (AEMP II)
Slots
-1 x PCIe 4.0 x16 slot
-1 x PCIe 4.0 x1 slot
Graphics
-1 x DisplayPort
-1 x HDMI
Storage
-Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
-M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
-M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
-4 x SATA 6Gb/s ports
USB
-2 x USB 10Gbps ports (2 x Type-A)
-4 x USB 2.0 ports (4 x Type-A)
-1 x USB 5Gbps connector (supports USB Type-C)*
-1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
-1 x USB 2.0 header supports 2 additional USB 2.0 ports
Audio
-Realtek 7.1 Surround Sound High Definition Audio CODEC*
-Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
-Supports up to 24-Bit/192 kHz playback
-Audio Features
-Audio Shielding
-Premium audio capacitors
-Dedicated audio PCB layers
Connectivity and networking
-1 x Intel 1Gb Ethernet port*
-ASUS LANGuard
Internal connectors
-1 x 4-pin CPU Fan header
-2 x 4-pin Chassis Fan headers
-1 x 24-pin Main Power connector
-1 x 8-pin +12V CPU Power connector
-2 x M.2 slots (Key M)
-4 x SATA 6Gb/s ports
-1 x USB 5Gbps connector (supports USB Type-C)
-1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
-1 x USB 2.0 header supports 2 additional USB 2.0 ports
-3 x Addressable Gen2 headers
-1 x Clear CMOS header
-1 x COM Port header
-1 x Front Panel Audio header (F_AUDIO)
-1 x S/PDIF Out header
-1 x SPI TPM header (14-1 pin)
-1 x 10-1 pin Front Panel System header
Rear connectors
-2 x USB 10Gbps ports (2 x Type-A)
-4 x USB 2.0 ports (4 x Type-A)
-1 x DisplayPort
-1 x HDMI port
-1 x Vertical M.2 slot (Key E)
-1 x Intel 1Gb Ethernet port
-3 x Audio jacks
-1 x PS/2 keyboard/mouse combo port
Form factor
-micro-ATX (24.4 cm x 22.2 cm)
