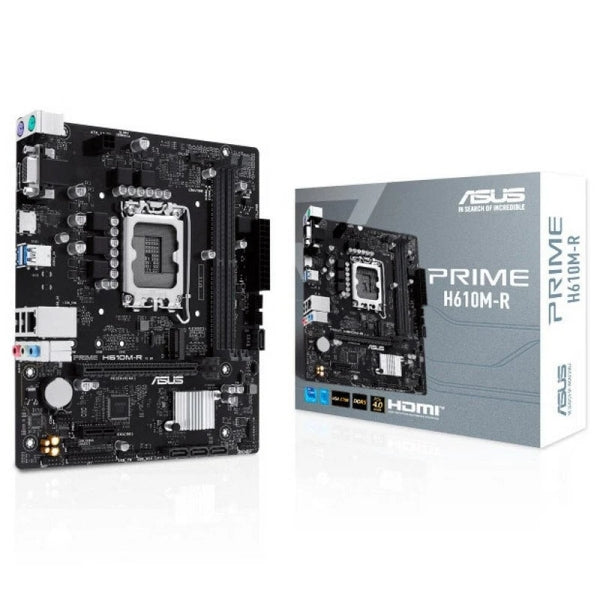

Asus Prime H610M-R-SI Intel1700 Motherboard 2x DDR5 - HDMI, M.2, PCIe4.0, 4x Sata III, USB 3.2, MicroATX

The Asus PRIME H610M-R-SI is a bulk motherboard, meaning it ships without packaging or accessories. Expertly designed to deliver the full potential of the new 13th generation processors, this model features an integrated cooling solution and incredible power.
Specifications:
Processor:
-Intel Socket LGA1700 for 13th and 12th generation Intel Core processors, Pentium Gold, and Celeron
-Supports up to Intel 65W CPU
-Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset:
-Intel H610
Memory:
-2 x DIMM, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered
-Dual-channel memory architecture
-Supports Intel Extreme Memory Profile (XMP)
Slots:
-1 x PCIe 4.0 x16
-1 x PCIe 3.0 x1
Graphics:
-1 x DisplayPort
-1 x VGA
-1 x HDMI
Storage:
-M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
-4 x SATA 6Gb/s
USB:
-2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
-2 x USB 2.0 ports (2 x Type-A)
-1 x USB 3.2 Gen 1 (5G) connector supporting 2 additional USB 3.2 Gen 1 ports
-2 x USB 2.0 headers supporting 4 additional USB 2.0 ports
Audio:
-High-definition audio CODEC with Realtek 7.1 surround sound
-Supports: jack detection, multi-streaming, front panel jack retasking
-Supports playback up to 24-bit/192 kHz
-Audio shielding
-Premium audio capacitors
-Dedicated audio PCB layers
Connectivity and networking:
-1 x Realtek 1Gb Ethernet
Internal connectors:
-1 x 4-pin CPU Fan header
-1 x 4-pin Chassis Fan header
-1 x 24-pin Main Power connector
-1 x 4-pin +12V Power connector
-1 x M.2 slot (Key M)
-4 x SATA 6 Gb/s ports
-1 x USB 3.2 Gen 1 (5G) connector supporting 2 additional USB 3.2 Gen 1 ports
-2 x USB 2.0 headers supporting 4 additional USB 2.0 ports
-1 x Clear CMOS header
-1 x Chassis intrusion header
-1 x COM Port header
-1 x Front Panel Audio header (AAFP)
-1 x LPT header
-1 x Speaker header
-1 x SPI TPM header (14-1 pin)
-1 x 10-1 pin System Panel header
Rear connectors:
-2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
-2 x USB 2.0 ports (2 x Type-A)
-1 x DisplayPort
-1 x VGA
-1 x HDMI
-1 x Realtek 1Gb Ethernet
-3 x Audio jacks
-1 x PS/2 Keyboard (Purple)
-1 x PS/2 Mouse (Green)
Form factor:
-Micro ATX (22.6 cm x 19.5 cm)
