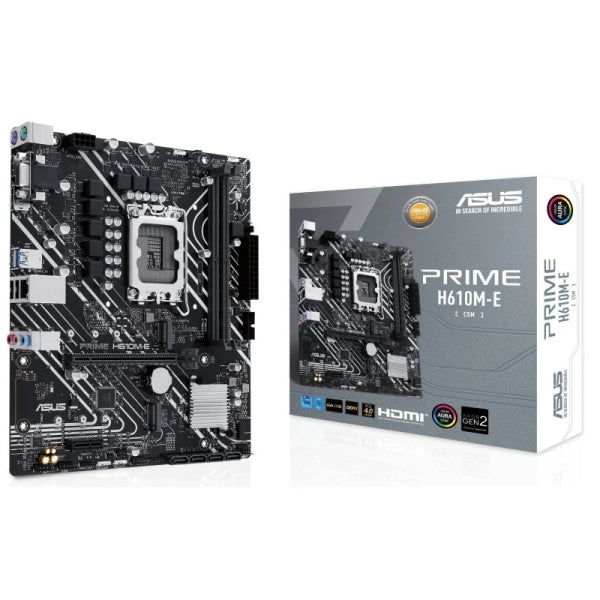

Asus Prime H610M-E-CSM Intel1700 Motherboard 2x DDR5 - HDMI, VGA, M.2, PCIe4.0, 4x Sata III, RJ-45, USB 2.0, 3.2, DisplayPort, MicroATX

ASUS Corporate Stable Model (CSM) is a business program designed to provide stable, reliable motherboards. It offers product lifecycle support for up to 36 months and a 6-month end-of-life notice to allow sufficient lead time for your organization to prepare for product transitions. Every purchase of an ASUS CSM motherboard comes with ASUS Control Center Express, server-grade IT management software.
Features:
-Intel LGA 1700 socket: Ready for 13th and 12th generation Intel processors.
-Complete cooling: PCH heatsink and Fan Xpert 2+.
-Ultra-fast connectivity: 32 Gbps M.2 port, Realtek 1 Gb Ethernet, and USB 3.2 Gen 1.
-Aura Sync RGB lighting: Built-in addressable Gen 2 ports and an Aura RGB port for RGB LED strips, easily synced with Aura Sync-compatible hardware.
-ASUS Control Center Express: real-time IT management and monitoring software for enhanced data protection.
Specifications:
Processor:
-Processor manufacturer: Intel
-Processor socket: LGA 1700
-Compatible processor: Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium Gold
-Supported processor sockets: LGA 1700
Memory:
-Compatible memory types: DDR5-SDRAM
-Number of memory slots: 2
-Memory slot type: DIMM
-Memory channels: Dual channel
-Non-ECC: Yes
-Supported memory clock speeds: 4800, 5000, 5200, 5400, 5600 MHz
-Maximum supported memory clock speed: 5600 MHz
-Maximum internal memory: 96 GB
-Unbuffered memory: Yes
Storage controllers:
-Supported storage drive types: HDD & SSD
-Supported storage disk interfaces: M.2, SATA III
-Number of supported HDDs: 4
-Number of compatible storage drives: 6
Graphics:
-Parallel processing support: Not supported
Internal I/O:
-USB 2.0 connectors: 2
-USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
-Number of SATA III connectors: 4
-S/PDIF output connector: Yes
-Front panel audio connector: Yes
-ATX power connector (24-pin): Yes
-CPU fan connector: Yes
-Number of chassis fan connectors: 2
-EPS power connector (8-pin): Yes
-Number of COM connectors: 1
-TPM connector: Yes
-12V power connector: Yes
-RGB LED strip connector: Yes
Rear panel I/O ports:
-Number of USB 2.0 ports: 2
-Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
-Ethernet LAN (RJ-45) port count: 1
-PS/2 mouse port: 2
-Number of VGA (D-Sub) ports: 1
-Number of HDMI ports: 1
-HDMI version: 2.1
-Number of DisplayPorts: 1
-DisplayPort version: 1.4
-Headphone outputs: 1
-Line input: Yes
-Microphone input jack: Yes
Connectivity:
-Ethernet: Yes
-Ethernet interface type: Gigabit Ethernet
-Wi-Fi: No
Features:
-Chipset: Intel H610
-Audio output channels: 7.1 channels
-Component for: PC
-Form factor: micro ATX
-Chipset family: Intel
-Cooling type: Passive
-Power: ATX
-Supported Windows operating system: Windows 10, Windows 11
Expansion slots:
-PCI Express x1 (Gen 3.x) slots: 1
-PCI Express x16 (Gen 4.x) slots: 1
-Number of M.2 (M) slots: 2
BIOS:
-BIOS types: UEFI AMI
-BIOS memory size: 128 MB/s
Weight and dimensions:
-Width: 244 mm
-Depth: 211 mm
