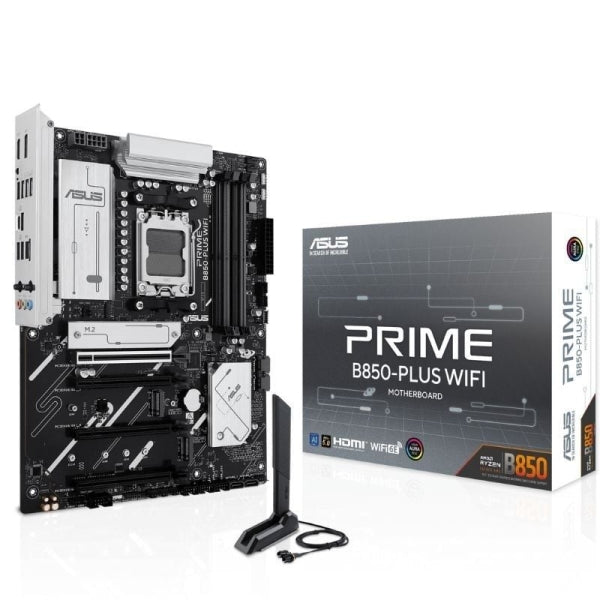

Asus Prime B850 PLUS WIFI AM5 Motherboard - WiFi, Bluetooth, 4x DDR5, 3x M2, 4x Sata III, PCIe 3.0, 4.0, 5.0, USB 2.0, 3.2, USB-C, RJ-45, HDMI, DisplayPort, ATX

ASUS Prime series motherboards are expertly designed to unleash the full potential of AMD Ryzen 9000 series processors. The PRIME B850-PLUS WIFI motherboard gives users and DIY PC builders a range of performance optimizations through intuitive software and firmware features. It is designed to be an advanced AI-ready PC, offering the power and connectivity needed for demanding AI applications.
AI Solutions
ASUS AI Solutions include AI Advisor as your expert technical advisor for PC performance.
Digital power design
The PRIME B850-PLUS WIFI features an 8+2+1 phase power design with discrete MOSFETs, ensuring efficient, stable power delivery for AMD processors, plus stable performance for everyday use.
Enhanced DDR5 performance
Comprehensive memory tuning options are the cornerstone of PRIME motherboards. The PRIME B850-PLUS WIFI maximizes the potential of your DDR5 modules, from basic kits to extreme-speed kits
Three M.2 slots (up to 128 Gbps)
The PRIME B850-PLUS WIFI offers a total of three M.2 slots, including one supporting data transfer speeds of up to 128 Gbps via PCIe 5.0, and two supporting PCIe 4.0. This enables faster boot times and application loading with OS or application drives
Cooler by design
The PRIME B850-PLUS WIFI motherboard is designed with several built-in heatsinks and a range of hybrid fan headers to keep your system cool and stable under intense workloads.
ASUS Fan Xpert 2+
ASUS Fan Xpert 2+ software provides comprehensive fan control. An Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode that reduces chassis fan speed below the default minimum to keep your system quiet during light tasks. Fans can also be controlled through the UEFI BIOS.
Cooler compatibility
ASUS AIO coolers offer solid performance, high overclocking potential, bold aesthetics, and customizable functionality for new motherboards, letting you build the gaming rig of your dreams
Boosting connections
This motherboard offers a versatile range of connectivity, including WiFi 6E support, a PCIe 5.0 slot, and an arsenal of USB ports including Type-C connections
Specifications:
-Socket: AMD AM5
-Chipset: AMD B850
-CPU compatibility: AMD Ryzen series 9000, 8000, 7000
-Memory: 4 x DIMM DDR5, up to 256 GB, up to 8000+ MT/s (OC)
-Memory support: ECC/Non-ECC, On-Die ECC, EXPO, AEMP
-Integrated graphics:
-1 x DisplayPort (up to 8K @ 30 Hz)
-1 x HDMI 2.1 (up to 4K @ 60 Hz)
-Expansion slots:
-1 x PCIe 5.0 x16 (Ryzen 9000/7000)
-1 x PCIe 4.0 x16 (Ryzen 8000)
-1 x PCIe 4.0 x16 (x4 mode, from chipset)
-2 x PCIe 3.0 x16 (x1 mode, shared with SATA)
-Storage:
-3 x M.2 (PCIe 5.0/4.0/4.0 depending on CPU)
-4 x SATA 6 Gb/s
-RAIDXpert2: RAID 0/1/5/10 (depending on Ryzen series)
-Network: Realtek 2.5Gb Ethernet, ASUS LANGuard
Wi-Fi and Bluetooth: Wi-Fi 6E (2x2, 2.4/5/6 GHz bands), Bluetooth 5.3
-Audio: Realtek 7.1, premium capacitors, dedicated PCB, up to 24-bit/192 kHz
-Rear USB:
-3 x USB 3.2 Gen2 Type-A
-1 x USB 3.2 Gen2 Type-C
-2 x USB 3.2 Gen1 Type-A
-2 x USB 2.0 Type-A
-Front USB:
-1 x USB 3.2 Gen1 Type-C
-1 x USB 3.2 Gen1 header (2 ports)
-3 x USB 2.0 headers (6 ports)
-Internal connectors:
-1 x CPU fan 4-pin
-1 x CPU OPT fan
-1 x AIO pump
-4 x Chassis fan
-1 x 24-pin ATX connector
-2 x CPU power connectors (8-pin + 4-pin)
-RGB: 3 x addressable Gen2 RGB headers
-Special features: Q-Design (Q-DIMM, Q-Slot, Q-LED), BIOS FlashBack, SafeSlot, Aura Sync, Armoury Crate
-Included software: ASUS Armoury Crate, Aura Creator, Fan Xpert 2+, TurboV Core, CPU-Z, Norton 360 (60 days), Adobe CC (trial), WinRAR
-BIOS: UEFI AMI, 256 Mb Flash ROM
-Compatible operating system: Windows 11 / Windows 10 64-bit
-Form factor: ATX (30.5 x 24.4 cm)
