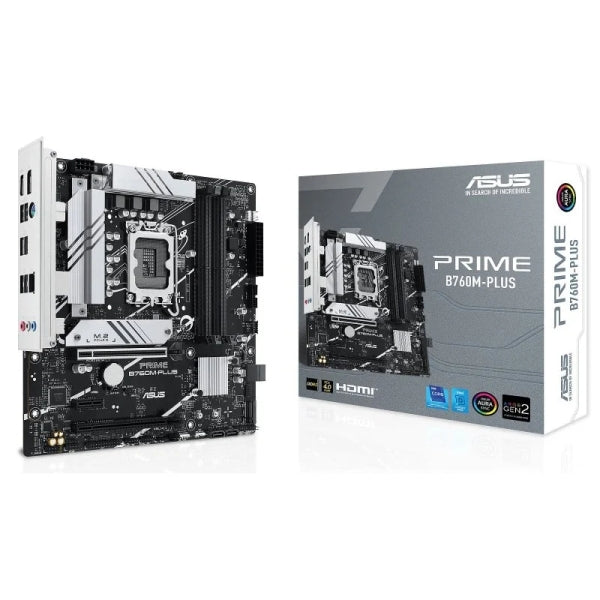

Asus Prime B760M-PLUS Intel 1700 Motherboard 4x DDR5 - HDMI, M.2, PCIe4.0, 4x Sata III, USB, RJ-45, Micro-ATX

ASUS Prime series motherboards are expertly designed to unleash the full potential of 14th and 13th generation Intel Core processors. With a robust power design, comprehensive cooling solutions, and smart tuning options, the PRIME B760M-PLUS gives users and PC builders a range of performance optimizations through intuitive software and firmware features.
Features:
-Intel LGA 1700 socket: Ready for 14th, 13th, and 12th generation Intel processors.
-Ultra-fast connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5 Gb Ethernet, rear 10 Gbps USB, front 5 Gbps Type-C USB.
-Complete cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers, and Fan Xpert 2+
-Exclusive memory technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II.
-Aura Sync RGB lighting: Built-in addressable Gen 2 headers and an Aura RGB header for RGB LED strips, easily synced with Aura Sync-compatible hardware.
-AI Two-Way Noise Cancelation: Reduces microphone and audio output background noise for crisp communication in games or video calls.
Specifications:
Processor:
-Processor manufacturer: Intel
-Processor socket: LGA 1700
-Compatible processor: Intel Celeron, Intel Pentium Gold, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9
-Supported processor sockets: LGA 1700
Memory:
-Compatible memory types: DDR5-SDRAM
-Number of memory slots: 4
-Memory slot type: DIMM
-Memory channels: Dual channel
-Non-ECC: Yes
-Supported memory clock speeds: 7200, 7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz
-Maximum supported memory clock speed: 7200 MHz
-Maximum internal memory: 192 GB
-Unbuffered memory: Yes
Storage controllers:
-Supported storage drive types: HDD & SSD
-Supported storage disk interfaces: M.2, SATA III
-Number of compatible storage drives: 6
-RAID support: Yes
-RAID levels: 0, 1, 5, 10
Graphics:
-Parallel processing support: Not supported
Internal I/O:
-USB 2.0 connectors: 3
-USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
-Number of SATA III connectors: 4
-S/PDIF output connector: Yes
-Front panel audio connector: Yes
-ATX power connector (24-pin): Yes
-CPU fan connector: Yes
-Number of chassis fan connectors: 2
-EPS power connector (8-pin): Yes
-Number of COM connectors: 1
-TPM connector: Yes
-12V power connector: Yes
-RGB LED strip connector: Yes
Rear panel I/O ports:
-Number of USB 2.0 ports: 4
-Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 2
-Ethernet LAN (RJ-45) port count: 1
-PS/2 mouse port: 1
-Number of HDMI ports: 1
-Number of DisplayPorts: 1
-Microphone input jack: Yes
Connectivity:
-Ethernet: Yes
-Ethernet interface type: 2.5 Gigabit Ethernet
-Wi-Fi: No
Features:
-Component for: PC
-Form factor: micro ATX
-Chipset family: Intel
-Chipset: Intel B760
-Audio output channels: 7.1 channels
-Supported Windows operating system: Windows 10 x64, Windows 11
Expansion slots:
-PCI Express x1 (Gen 4.x) slots: 1
-PCI Express x16 (Gen 4.x) slots: 2
-Number of M.2 (M) slots: 2
BIOS:
-BIOS types: UEFI AMI
-BIOS memory size: 128 MB/s
Weight and dimensions:
-Width: 244 mm
-Depth: 244 mm
