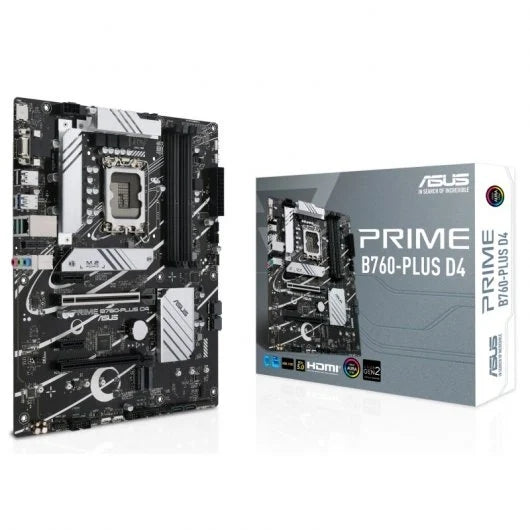

Asus Prime B760-Plus D4 Intel 1700 Motherboard DDR4 - HDMI, VGA, PCIe 5.0, M2, 4x Sata III, USB 2.0, 3.2, RJ-45, DisplayPort

The ASUS PRIME B760-PLUS D4 motherboard, designed for 12th and 13th generation hybrid Intel Core processors, is ideal for building a powerful, versatile system. ASUS Prime motherboards are designed and built for demanding users seeking consistent performance and long-term reliability. They make the most of their components with a unique design made from rugged materials and exclusive utilities. They incorporate professional features and combine the advantages of the latest Intel processors with ASUS's iconic design and features.
Features:
-Compatible with 12th and 13th generation Intel Core processors on the LGA 1700 socket
-Supports DDR4 memory, up to 5066 MHz (OC)
-3 PCIe 4.0 M.2 slots + 4 SATA 6 Gbps ports
-PCI-Express 5.0 16x slot
-ASUS 5X PROTECTION III with DIGI+ VRM, LANGuard, overvoltage protection
-Complete cooling: M.2 heatsink, hybrid fan connectors, and Fan Xpert 2+
-USB 3.2 Type C port
-2.5 GbE LAN
-Aura Sync and ARGB fan support
Specifications:
Processor:
-Intel Socket LGA1700 for 13th generation Intel Core processors and 12th generation Intel Core, Pentium Gold, and Celeron processors*
-Compatible with Intel Turbo Boost 2.0 Technology and Intel Turbo Boost Max Technology 3.0**
*See www.asus.com for the CPU support list.
**Support for Intel Turbo Boost Max Technology 3.0 depends on the CPU type.
Chipset:
-Intel B760 Chipset
Memory:
-4 DIMM, max. 128 GB, DDR4
-5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/340, unbuffered memory*
-Dual channel memory architecture
-Supports Intel Extreme Memory Profile (XMP)
-OptiMem
*Supported memory types, data speed, and number of DRAM modules vary by CPU and memory configuration; for more information, see www.asus.com for the memory support list.
Graphics:
-1 x DisplayPort**
-1 VGA port
-1 HDMI port***
*Graphics specifications may vary between CPU types. See www.intel.com for updates.
**Supports max. 4K@60Hz as specified in DisplayPort 1.4.
***Supports 4K@60Hz as specified in HDMI 2.1.
Expansion slots:
-13th and 12th generation Intel processors*
-1 PCIe 5.0 x16 slot
-Intel B760 chipset
-1 x PCIe 4.0 x16 slot (supports x4 mode)
-2 PCIe 3.0 x1 slots
Note: To ensure compatibility of installed devices, see https://www.asus.com/support/ for the compatible peripherals list.
-Storage fully supports 3 M.2 slots and 4 SATA 6 Gb/s ports*
-13th and 12th generation Intel processors
-M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
-Intel B760 chipset
-M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
-M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
-4 SATA 6Gb/s ports
*Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet:
-1 Realtek 2.5 Gb Ethernet
Wireless & Bluetooth:
-M.2 vertical slot only (Key E, CNVi, and PCIe)*
*The Wi-Fi module is sold separately.
USB:
-Rear USB (Total 6 ports)
-1 USB 3.2 Gen 2x2 port (1 USB Type-C)
-2 USB 3.2 Gen 2 ports (2 Type-A)
-1 USB 3.2 Gen 1 port (1 Type-A)
-2 USB 2.0 ports (2 Type-A)
-Front USB (7 ports total)
-1 USB 3.2 Gen 1 connector (supports USB Type-C)
-1 USB 3.2 Gen 1 header supporting 2 additional USB 3.2 Gen 1 ports
-2 USB 2.0 headers supporting 4 additional USB 2.0 ports
Audio:
-High-definition audio CODEC with Realtek 7.1 surround sound*
-Supports: jack detection, multi-streaming, front panel jack retasking
-Supports playback up to 24-bit/192 kHz
Sound features:
-Audio shielding
-Premium audio capacitors
-Dedicated audio PCB layers
*A chassis with a front-panel HD audio module is required to support 7.1 surround sound audio output.
Rear panel I/O ports:
-1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
-2 x USB 3.2 Gen 2 ports (2 x Type-A)
-1 x USB 3.2 Gen 1 port (1 x Type-A)
-2 x USB 2.0 ports (2 x Type-A)
-1 x DisplayPort
-1 x VGA port
-1 x HDMI port
-1 x Vertical M.2 slot (Key E)
-1 x Realtek 2.5Gb Ethernet port
-3 x Audio jacks
Internal I/O connectors:
Fan and cooling related:
1 x 4-pin CPU Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related:
-1 x 24-pin Main Power connector
-1 x 8-pin +12V Power connector
Storage related:
-3 x M.2 slots (Key M)
-4 x SATA 6Gb/s ports
USB:
-1 x USB 3.2 Gen 1 connector (supports USB Type-C)
-1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
-2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous:
-3 x Addressable Gen 2 headers
-1 x Aura RGB header
-1 x Clear CMOS header
-1 x COM Port header
-1 x Front Panel Audio header (AAFP)
-1 x S/PDIF Out header
-1 x SPI TPM header (14-1pin)
-1 x 20-3 pin System Panel header with Chassis intrude function
-1 x Thunderbolt (USB4) header
BIOS:
-128 Mb Flash ROM, UEFI AMI BIOS
Operating system:
-Windows 11, Windows 10 64-bit
Form factor:
-ATX Form Factor
-12 inch x 9.6 inch (30.5 cm x 24.4 cm)
