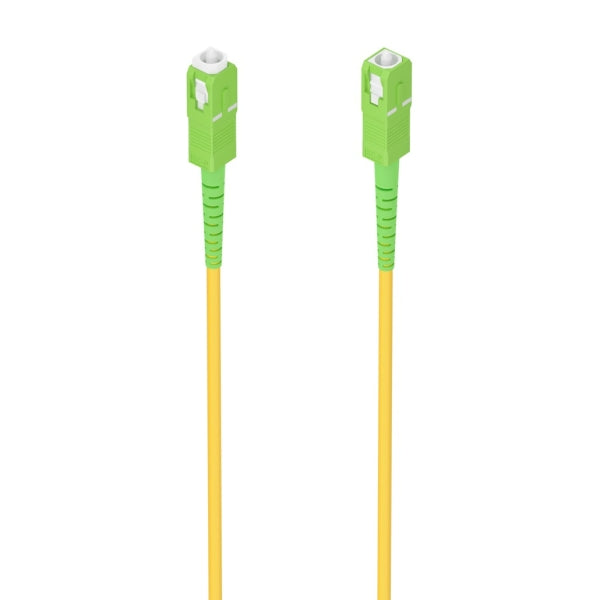

Single-mode fiber patch cord with SC/APC connector on both sides and G657A2 fiber type.
The 9/125 µm single-mode fiber optic cable is ideal for enterprise networks, telecom rooms, server farms, cloud storage networks and anywhere fiber optic patch cords are needed.
This OS2 single-mode 9/125 fiber optic cable is ideal for connecting 1G/10G/40G/100G Ethernet connections. It can transmit data up to 10km at 1310nm, or up to 40km at 1550nm.
Specifications:
-Connector type: SC to SC
-Polishing type: APC to APC
-Insertion loss <0,3dB > Return loss >50dB
-Fiber mode: OS2 9/125 µm
-Fiber type: ITU-T G.657A2 single-mode (SM) 9/125
-Outer diameter: 3,0 mm
-Minimum radius of curvature: 7,5mm
-Cover material: Dupont Kevlar
-Fiber quantity: Simplex
-1310nm attenuation < 0,4 dB/km > 1490nm attenuation < 0,4 dB/km > 1550nm attenuation < 0,3 dB/km > Operating temperature: -20 °C to 70 °C
-Free of halogens (LSZH or LSOH or LS0H or LSFH) and complies with CPR Dca regulations.
-Length: 10 Meters
-Color: Yellow
-Regulations: RoHS, CPR Dca
-Function test: 100% tested
