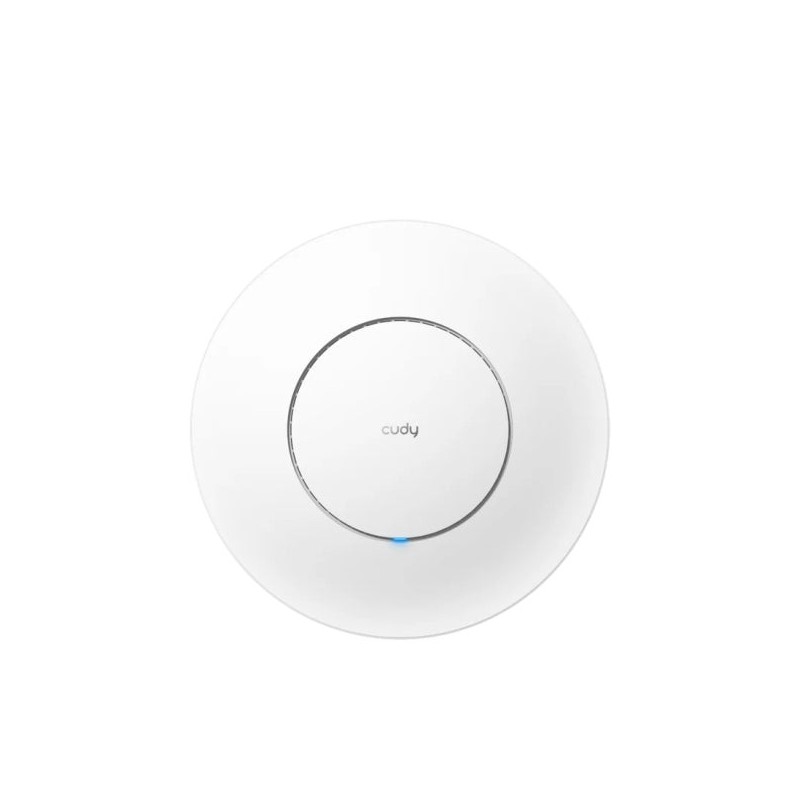

Cudy AP3000 Wireless Access Point - Up to 2976 Mbit/s - 2,5G Port - Power over Ethernet (PoE)

Impress your customers with fast, responsive Wi-Fi with multi-gig bandwidth, enabled by the highest channel width of 160 MHz on Wi-Fi 6. A shielded 2,5G Ethernet port allows more devices to stream simultaneously without buffering, even in a complex electromagnetic environment.
Connect 512 devices with 512 MB of RAM.
1,3 GHz dual-core CPU, large RAM and enhanced UL/DL MU-MIMO and OFDMA technologies significantly reduce transmission latency to and from the AP when connecting multiple devices.
5 antennas and 3+2 structure that improve coverage.
Five antennas plus a 3+2 structure create more paths to avoid obstacles. Beamforming tracks the directions of connected devices and boosts the signal to them.
Mesh compatible for perfect coverage.
Mesh support (802,11k/v) allows customers to seamlessly switch between access points, ensuring uninterrupted Wi-Fi calling or live streaming when on the go. *Requires Cudy Wi-Fi router/mesh unit/VPN router/AC as gateway with firmware newer than 15,28.
Features:
-1,3 GHz dual-core CPU
-512 MB RAM
-Wi-Fi 6 dual band and 4 streams
-2402 Mbps + 574 Mbps Wi-Fi
-1 shielded 2,5 GbE PoE input
-802,3at, Passive PoE, DC
-Surveillance, scheduled restart
-Covers 130 m² (1,400 ft²)
Specifications:
UPC: MT7981BA chipset
CPU details: 1,3 GHz dual-core CPU
Memory/Storage:
-Flash memory/ROM: 256 MB (2 Gbit) NAND
-DDR RAM: 512 MB (4 GB) DDR4
Wireless:
-5 GHz Wi-Fi speed: 2402 Mbps
-2,4 GHz Wi-Fi speed: 574 Mbps
-5 GHz Wi-Fi Transmissions: 3T3R (3x3 MIMO)
-2,4 GHz Wi-Fi Transmission: 2T2R (2x2 MIMO)
-WiFi antennas: 5× Internal
-Maximum 5 GHz antenna gain: 5,6 dBi
-Maximum 2,4 GHz antenna gain: 4,8 dBi
-FEM or PA/LNA: 5 GHz: 3× high power, 2,4 GHz: 2× high power
-Beamforming: True
-Range Performance: Max: 200 m (656 ft)
The range of the indoor WiFi connection varies depending on the design and materials of the walls. See wall performance specifications for placement suggestions.
-Wall performance: Two wooden walls with a thickness < 10 cm (4\'\')
One concrete wall with a thickness < 20 cm (7\'\') or two concrete walls with a thickness < 10 cm (4\'\')
Interfaces:
2,5G RJ45 ports: 1
Ethernet Notes: Accepts PoE power
Physical buttons: Reset button
Power input: DC connector, PoE via Ethernet port
Energy control:
Power methods: Direct current, PoE 802,3at/af, Passive PoE
Continuous current: 12 V 1,5 A
Passive PoE: 48 ~ 57V
Power adapter:
Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1,5A DC
AP3000_P PoE Adapter in the box:
Input: 100 ~ 240 V, 50/60 Hz AC
Output: 48V Passive PoE
Certifications:
-FCC, CE
Dimensions and weight:
-Dimensions: 231,9 × 57,1 mm
-Weight: 494 gr
Packaging content:
-AP3000
-Power adapter
-Mounting kit
-Ethernet Cable
-Installation guide
