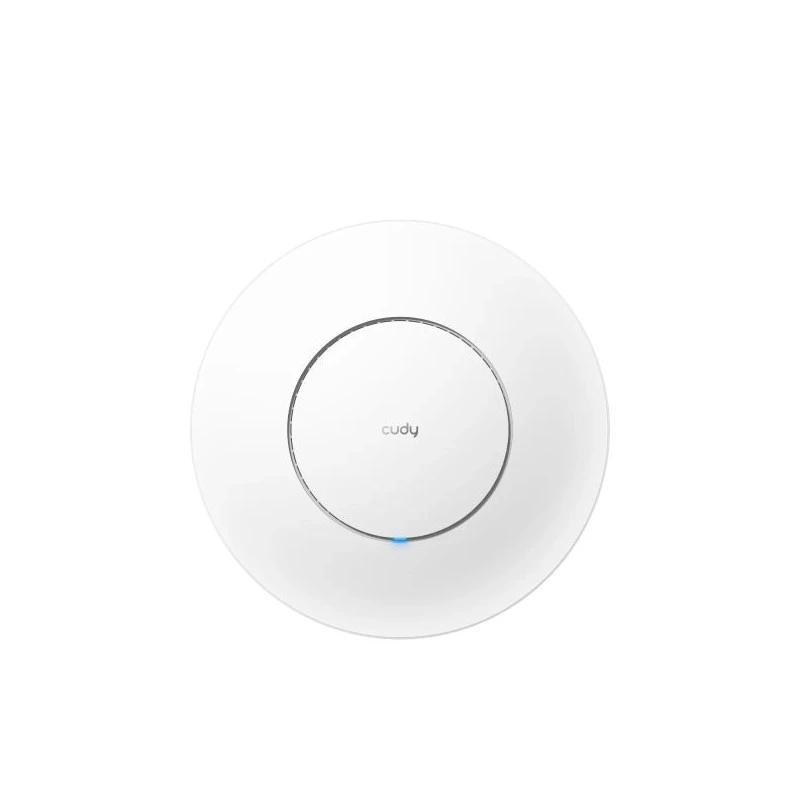

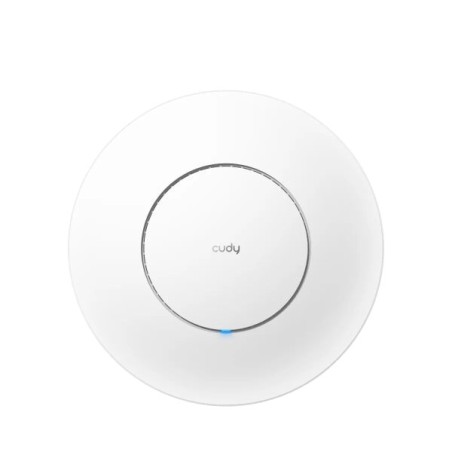

Cudy BE3600 Ceiling Access Point - Dual Band up to 2882Mbps - WiFi 7 - 120m2 Coverage - up to 200 Devices - Passive PoE

Discover the WiFi 7 access point designed to deliver high-speed connectivity and performance in high-density environments such as shopping malls, offices and campuses. With a wall or ceiling mounting structure, this device combines advanced technology with ease of installation, allowing efficient coverage in areas up to 120 m² and supporting up to 200 devices connected simultaneously. Its powerful 2 GHz quad-core Broadcom CPU, along with dual-band, 4-stream Wi-Fi 7 technology, guarantees speeds of up to 2882Mbps on the 5GHz band and 688Mbps on the 2,4 GHz band, providing an uninterrupted browsing, streaming and online working experience.
This access point features high-speed Ethernet ports, including a 2,5G PoE port and a PoE output port, making it easy to power and connect additional devices without the need for additional cables. Support for 802,3at PoE and passive PoE standards, along with advanced features such as monitoring, scheduled reboot, and hardware watchdog management, ensure reliable and secure operation in demanding environments. In addition, its compact and resistant design, with internal and external antennas, allows optimal performance in different conditions and construction materials, adapting to the specific needs of each space.
Ideal for high-density and demanding scenarios, this WiFi 7 access point combines power, flexibility and ease of installation in a single device. Its compatibility with multiple power methods, including DC and PoE, along with its EMC certification and resistance to electrostatic discharge, ensure stable and safe operation. With compact dimensions and light weight, it is the perfect solution to improve connectivity in commercial, educational and corporate environments, ensuring a superior user experience and a future-proof network infrastructure.
Features:
-2 GHz quad-core Broadcom CPU
-4-Stream Dual-Band Wi-Fi 7
-2882 ​​Mbps + 688Mbps Wi-Fi
-1 shielded 2,5 GbE PoE input
-1 shielded GbE PoE output
-802,3at, Passive PoE, DC
-Surveillance, scheduled restart
-Covers 120 m² (1,300 ft²)
-200 connected devices
Specifications:
-CPU Details: Quad-Core @ 2,0 GHz, ARM Cortex-A7
-Flash/ROM: 128 MB (1 Gbit) NAND
-DDR/RAM: 512 MB (4 Gbit) DDR3L
-5 GHz Wi-Fi speed: 2882 Mbps
-2,4 GHz Wi-Fi speed: 688 Mbps
-5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
-2,4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
-Wi-Fi antennas: 4× internal
-FEM or PA/LNA: 5 GHz: 2× external / 2,4 GHz: 2× internal
-Beamforming: True
-Range performance: Maximum: 220m (722 ft) Tested in open space environments with minimal interference. Actual WiFi range may vary depending on wall design and materials. See Wall Performance specifications for placement suggestions.
-Performance on walls: Two wooden walls with thickness < 10cm (4\'\') One concrete wall with thickness < 20cm (7\'\') or two concrete walls with thickness < 10cm (4\'\')
-2,5G RJ45 ports: 1
-Gigabit RJ45 ports: 1
-Notes on Ethernet: Accepts PoE power
-LED: System
-Physical buttons: Reset button
-Power interfaces: DC Jack / PoE via Ethernet port
-Power methods: DC / Passive PoE / PoE 802,3at
-Power input: DC: 12V⎓1A / Passive PoE: 48-57V⎓ / PoE: 802,3at/af
-Power adapter included in the box: AP3600
Without adapter in the box: AP3600_P
PoE adapter in the box: Input: 100-240V~, 50/60Hz Output: 48V⎓ Passive PoE
-Maximum power consumption (W): 10W
-Advanced: Hardware Watchdog
-EMC: ESD: Contact: 4kV, Air: 8kV
-Ambient: Operating temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) / Storage temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) / Humidity: 10% ~ 90% non-condensing / Storage humidity: 5% ~ 95% non-condensing
-Installation: Wall/Ceiling Mount
-Dimensions: 231,9×231,9×57,1mm (9,13×9,13×2,25 inches)
-Product weight: Without adapter
EU: 435,0g (15,34 oz.) / With PoE adapter (_P): 435,0g (15,34 oz.)
