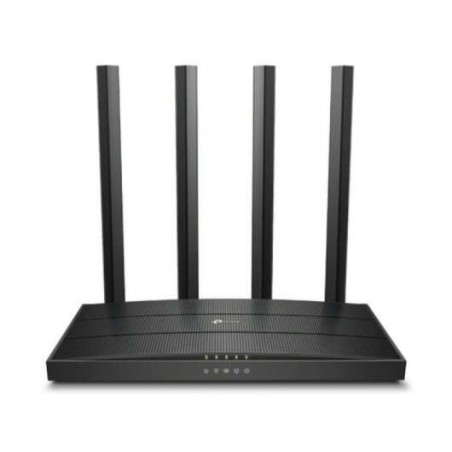

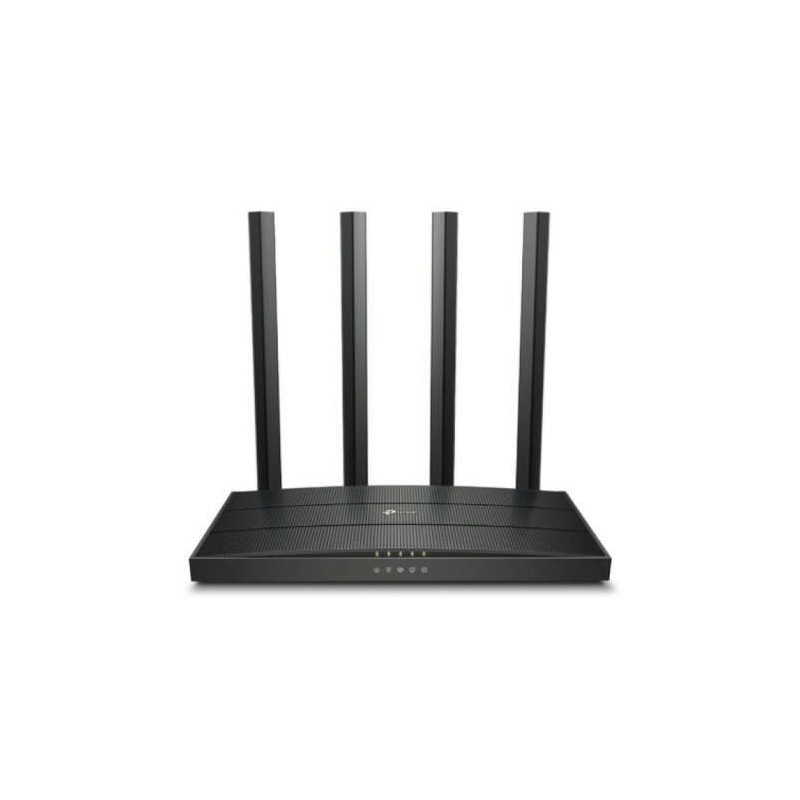

TP-Link AC1900 MU-MIMO Wireless Router

Maximum Wi-Fi Performance with Three Data Streams
With 3×3 MIMO, the Archer C80 is capable of transmitting and receiving data in 3 streams. 3×3 computers—like Macs—pair perfectly with the C80, allowing maximum performance with greater efficiency than 2×2 MIMO routers.
Home Wi-Fi 802,11ac Wave2 Incredible
Archer C80 delivers high-performance, affordable WiFi with total speeds of up to 1900 Mbps. It handles simple tasks like sending emails or browsing the web on the 2,4 GHz band and bandwidth-intensive tasks like online gaming or 4K/8K UHD streaming on the 5 GHz band, all without lag.
Broader Coverage Throughout Your Home
Access entertainment from every corner of your home with 4 high-performance external antennas. Beamforming technology detects devices and focuses wireless signal strength on them, even if they are far away or low on power.
Connect More Devices Simultaneously
The Archer C80 helps devices achieve optimal performance by making communication more efficient with MU-MIMO technology. Multiple devices can send and receive data on the best available band. Enjoy non-stop entertainment on all your devices, without delays.
Increased Efficiency in Wi-Fi Distribution
Smart Connect helps the router automatically switch each device's connection to the best available Wi-Fi band, while Airtime Fairness prevents older devices from slowing down the network. With both, everyone can enjoy a smoother, lag-free Wi-Fi experience.
Gigabit Ports
Gigabit Ethernet ports (1 WAN + 4 LAN) offer maximum wired speeds. Connect PCs, smart TVs, and game consoles for fast, reliable connections.
Features:
- 802,11ac Wave2 Wi-Fi – 1300 Mbps on the 5 GHz band and 600 Mbps on the 2,4 GHz band.
- 3×3 MIMO Technology – Transmission and reception of three WiFi data streams to pair perfectly with 3×3 clients.
- Enhanced Wi-Fi Coverage - Beamforming technology provides a highly efficient wireless connection.
MU-MIMO – Helps teams achieve optimal performance thanks to more efficient communication.
- Customized Management – Advanced features such as Parental Control, Guest Network and Access Control provide customized network management.
- Smart Connect – Smart Connect directs customers to the least congested band and Airtime Fairness optimizes usage time.
Specifications:
• WAN Connection:
- Ethernet WAN: Yes
- WAN connection type: RJ-45
• Wireless LAN Features:
- Wi-Fi Band: Dual band (2,4 GHz / 5 GHz)
- Wi-Fi Standard: Wi-Fi 5 (802,11ac)
- WLAN data transfer rate (max.): 1300 Mbit/s
- Wi-Fi standards: 802,11a,802,11b,802,11g,Wi-Fi 4 (802,11n),Wi-Fi 5 (802,11ac)
- WLAN data transfer rate (first band): 600 Mbit/s
- WLAN data transfer rate (second band): 1300 Mbit/s
• Connection:
- Ethernet: Yes
- Ethernet LAN interface type: Gigabit Ethernet
- Ethernet LAN, data transfer speed: 10,100,1000 Mbit/s
- Wiring technology: 10/100/1000Base-T(X)
- Network standards: IEEE 802,11a,IEEE 802,11ac,IEEE 802,11b,IEEE 802,11g,IEEE 802,11n
- Port forwarding: Yes
- Dynamic DNS: Yes
- Receiver sensitivity: 5 GHz: 11a 6Mbps:-98dBm, 11a 54Mbps:-78dBm, 11ac VHT20_MCS0:-98dBm, 11ac VHT20_MCS8:-72dBm 11ac VHT40_MCS0:-92dBm, 11ac VHT40_MCS9:-68dBm 11ac VHT80_MCS0:-89dBm, 11ac VHT80_MCS9:-64dBm 2,4 GHz: 11g 6Mbps:-97dBm, 11a 54Mbps:-77dBm 11n VHT20_MCS0:-97dBm, 11n VHT20_MCS8:-72dBm 11n VHT40_MCS0:-92dBm, 11n VHT40_MCS9:-67dBm
• Mobile networks:
- 3G: No
- 4G: No
• Ports and Interfaces:
- Ethernet LAN (RJ-45) number of ports: 5
- USB port: No
- Memory card slot(s): No
- DC Input Plug: Yes
• Administration features:
- Restore button: Yes.
- WPS push-button security: Yes.
• Security:
- Supported security algorithms: 64-bit WEP,128-bit WEP,WPA,WPA-PSK,WPA2,WPA2-PSK
- Firewall: Yes
- Guest access: Yes
- Access Control List (ACL): Yes
- Stateful firewall: Yes
- MAC, address filter: Yes
- DMZ Support: Yes
• Protocols:
- DHCP, client: Yes
- DHCP, server: Yes
- Universal Plug and Play (UPnP, Universal Plug and Play): Yes
• Antenna:
- Antenna type: External
- Number of antennas: 4
- Detachable antenna(s): Yes
- Transmission power: CE: <20dBm(2,4 GHz), <23dBm(5,15 GHz~5,25 GHz), FCC: <30dBm(2,4 GHz & 5 GHz)
• Other features
- Certification: CE, FCC, RoHS
• Energy control:
- Power: DC
- Output voltage: 12 V
• Environmental conditions:
- Operating temperature range: 0 - 40 °C
- Storage temperature range: -40 - 70 °C
- Relative humidity range for operation: 10 - 90%
- Relative humidity range during storage: 5 - 90%
• System requirements:
- Compatible browser: Internet Explorer 11, Firefox 12,0, Chrome 20,0, Safari 4,0
- Supported Windows operating system: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64,Windows 10 x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8,1, Windows 8,1 Enterprise, Windows 8,1 Enterprise x64, Windows 8,1 Pro, Windows 8,1 Pro x64, Windows 8,1 x64, Windows 98SE, Windows NT, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional,Windows XP Professional x64
- Linux operating system supported: Yes
- Supported MAC operating system: macOS
- Compatible with Mac: Yes
• Weight and dimensions
- Width: 215 mm
- Depth: 117 mm
- Height: 32 mm
