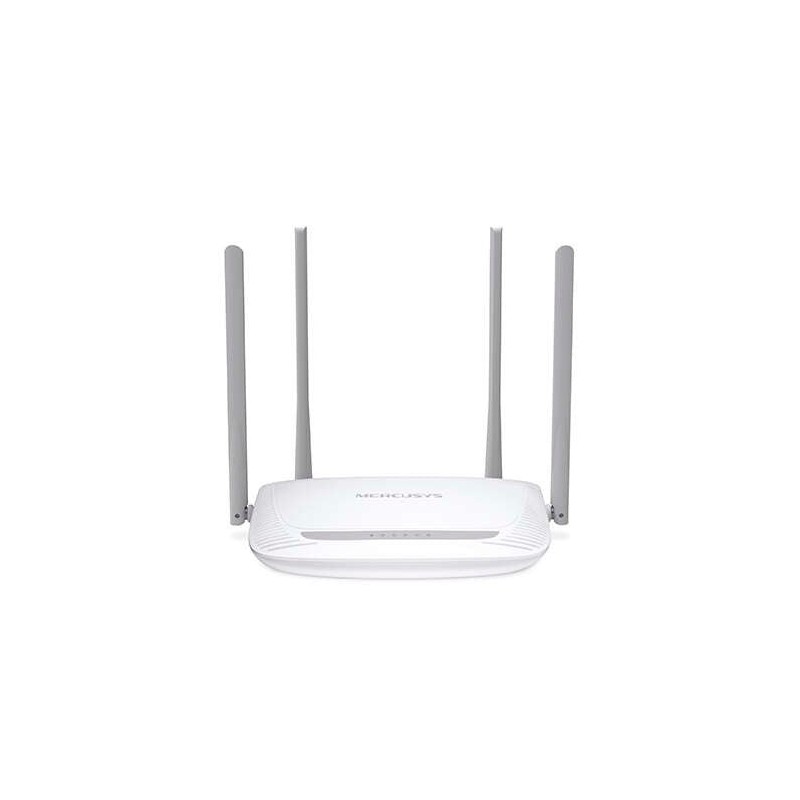

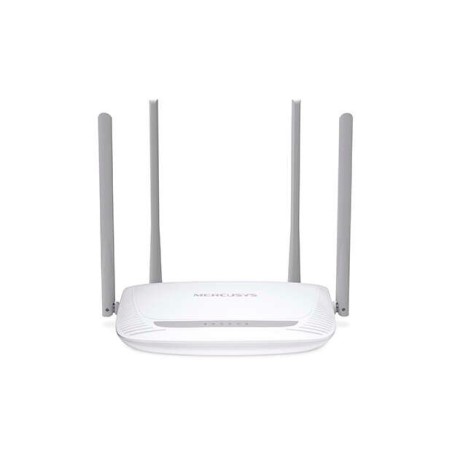

Mercusys N 300Mbps Wireless Router - 4 10/100Mbps Ports - 4 5dBi Antennas - 2x2 MIMO Technology - Up to 500m2 WiFi Coverage

Up to 500 m2 of Wi-Fi coverage.

The MW325R creates an expansive wireless network that can cover your home with up to 500m2 of wireless coverage. Enjoy reliable, high-performance connections in the living room, the bedroom or even the back garden.

* Range specifications are based on performance test results. Actual performance varies depending on the application and environmental conditions.

Four 5dBi antennas.

By combining 2x2 MIMO technology with four high-gain antennas, the MW325R can significantly increase its signal transmission and reception capabilities. This means you don't have to worry about lag or dropped connections while enjoying online gaming and video streaming.

Three-step installation.

No complicated setup needed: simply follow the step-by-step instructions on the intuitive web page to set up your MW325R in minutes.

-1 Create a unique login password.

-2 Choose your internet service and fill in the required information.

-3 Set your wireless network name (SSID) and password.

Network security.

Comprehensive security features help your devices establish secure connections with the MW325R.

-Parental controls

Manage when and how connected devices can access the internet.

-Guest network

Keep your main network secure by creating a separate network for guests.

-Advanced encryption

Make sure your wireless connection is safe from intruders with wireless encryption standards.

Features:

-Maximum coverage: 4 x 5 dBi antennas provide up to 500m2 of wireless coverage.

-Improved signal: High-gain antennas increase wireless signal strength and stability.

-300Mbps wireless speed: Ideal for HD streaming, online gaming and downloading large files.

-Easy installation: Intuitive web interface that guides you through the setup in a few minutes.

Coverage specifications are the result of performance tests. Actual performance varies depending on environmental and application conditions

Specifications:

-Antenna type: 4 omnidirectional antennas x 5dBi

-Button: Reset button

-Interfaces: 3 LAN ports 10/100Mbps, 1 WAN port 10/100Mbps

-Package contents: MW 325R Wireless Router, Power Adapter, Quick Installation Guide, Ethernet Cable

-Environment: Operating temperature: 0℃~40℃ (32℉ ~104℉), Storage temperature: -40℃~70℃ (-40℉ ~158℉), Operating humidity: 10%~90% non-condensing, Storage humidity: 5%~90% non-condensing

-WAN type: Dynamic IP/Static IP/PPPoE/L2TP/PPTP

-Management: Access Control, Local Management, Remote Management

-DHCP: Server, DHCP Client List

-Firewall security: IP and MAC address binding

-Guest network: 2.4GHz Guest Network

-Dimensions: 167mm x 118mm x 33mm

-External power supply: 5VDC/0.6A

-Signal rate: 11n: Up to 300Mbps (Dynamic), 11g: Up to 54Mbps (Dynamic), 11b: Up to 11Mbps (Dynamic)

-Wireless standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.3, IEEE 802.3u

-Frequency: 2.4 - 2.5GHz

-Receive sensitivity: 270M: -70dBm@10% PER, 130M: -72dBm@10% PER, 54M: -74dBm@10% PER, 11M: -87dBm@10% PER, 6M: -92dBm@10% PER, 1M: -94dBm@10% PER

-Certifications: CE, RoHS

-Transmit power: <20dBm

-Wireless security: IP and MAC address binding

-Wireless functions: Enable/Disable Wireless Radio, WDS bridge

-Port forwarding: Virtual server, UPnP, DMZ

-Dynamic DNS: Oray

-Protocols: IPv4
