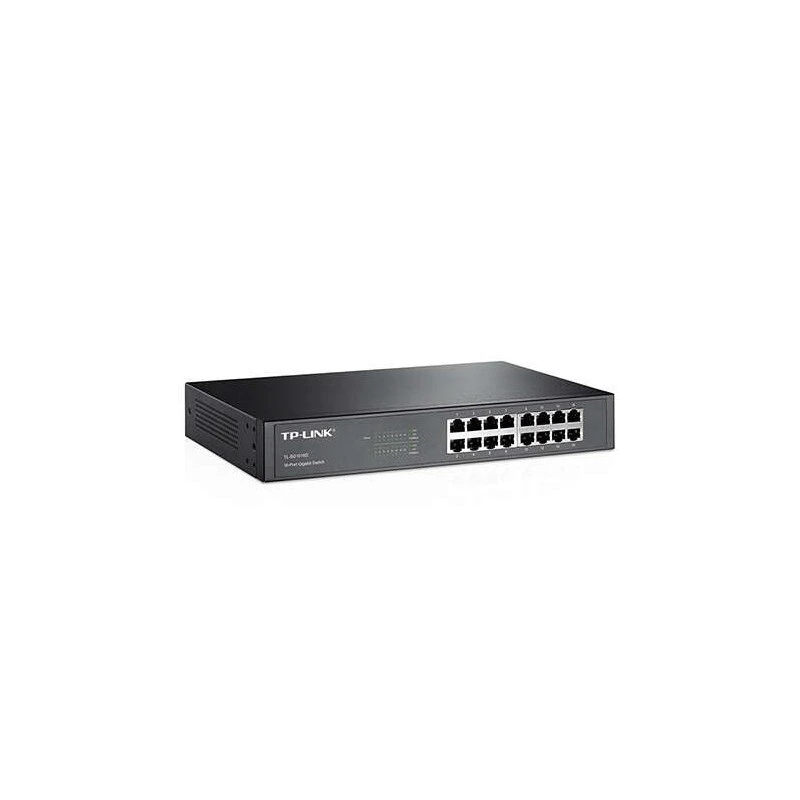

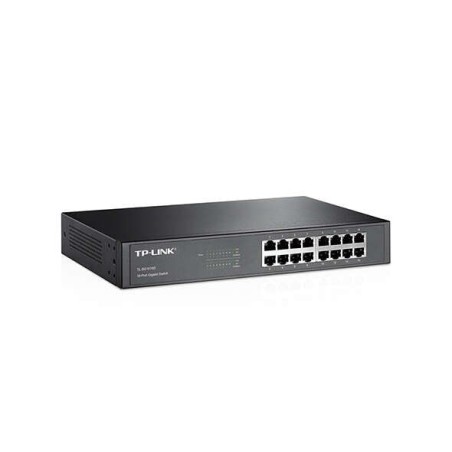

TP-Link TL-SG1016D 16-Port Gigabit 10/100/1000Mbps Switch

What this product is for:
-The TL-SG1016D Gigabit Ethernet Switch offers a high-performance, low-cost, easy-to-use, seamless, standard upgrade to improve your old network to a 1000Mbps network. All 16 of its ports support Auto MDI/MDIX, so there's no need to worry about the type of cable - just plug in and go. Additionally, with its innovative energy-efficient technology, the TL-SG1016D can save up to 15% of power consumption, and since around 80% of the packaging material can be recycled, it's an eco-friendly solution for your business network.
TP-LINK Energy-Efficient Technology:
-This new-generation TL-SG1016D Gigabit switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to link status to limit your network's carbon footprint. It also complies with the EU's RoHS, which prohibits the use of certain hazardous materials. In addition, 80% of the packaging material can be recycled.
High performance:
-All 16 of its ports are Gigabit RJ-45, which can provide great file transfer and are also compatible with 10Mbps and 100Mbps Ethernet devices. With its non-blocking architecture, the TL-SG1016D redirects and filters packets at full wire speed for maximum performance. With its 10KB Jumbo packet, the performance of large file transfers has been considerably improved. In addition, IEEE 802.3x flow control for Full Duplex mode and back-pressure for Half Duplex mode relieve traffic congestion and make the TL-SG1016D's job fully reliable. It's a perfect choice for upgrading your network to Gigabit while properly protecting your previous investment.
Easy to use:
-This Gigabit switch's automatic features make plug and play installation hassle-free. No configuration is required. MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port detects the link speed of a network device (10, 100 or 1000 Mbps) and intelligently adjusts for optimal compatibility and performance.
* Maximum energy savings compared to a traditional TP-LINK switch. The final savings percentage may vary depending on usage conditions.
Features:
-16 ports at 10/100/1000 Mbps.
-Innovative energy-efficient technology that saves up to 40%* of energy.
-Supports MAC address learning (Auto-Learning) and automatic MDI/MDIX negotiation.
-Plug & Play design.
Specifications:
-Hardware features:
Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x.
Interface: 16 RJ45 ports at 10/100/1000 Mbps with auto negotiation (automatic MDI/MDIX).
Network Media:
-10Base-T: Category 3, 4, 5 UTP cable (100 meters maximum).
-100Base-Tx/1000Base-T: Category 5, 5e UTP cable (maximum 100 meters).
Number of Fans: Fanless.
Power Supply: 100-240VAC, 50/60Hz.
Power Consumption: Maximum: 13.3W (220V/50Hz).
Dimensions: 11,6*7,1*1,7 inches (294*180*44 mm).
-Performance:
Switching Capacity: 32Gbps.
Packet Forwarding Rate: 23.8Mpps.
MAC Address Table: 8K.
Jumbo Frame: 10KB.
Green Technology: Innovative energy-efficient technology that saves up to 15%* of energy.
Transfer Method: Store-and-Forward.
-Other:
Certifications: FCC, CE, RoHs.
Package Contents: .
-16-Port Gigabit Switch.
-Power Cable.
-User Manual.
-Rackmount Kits.
-Rubber Feet.
System Requirements: Microsoft ® Windows ® XP, Vista™, Windows 7 or Windows 8, MAC ® OS, NetWare ®, UNIX ® or Linux.
Environmental Factors:
-Operating Temperature: 0°C~40°C (32°F~104°F).
-Storage Temperature: -40°C~70°C (-40°F~158°F).
-Operating Humidity: 10%~90% non-condensing.
-Storage Humidity: 5%~90% non-condensing.
