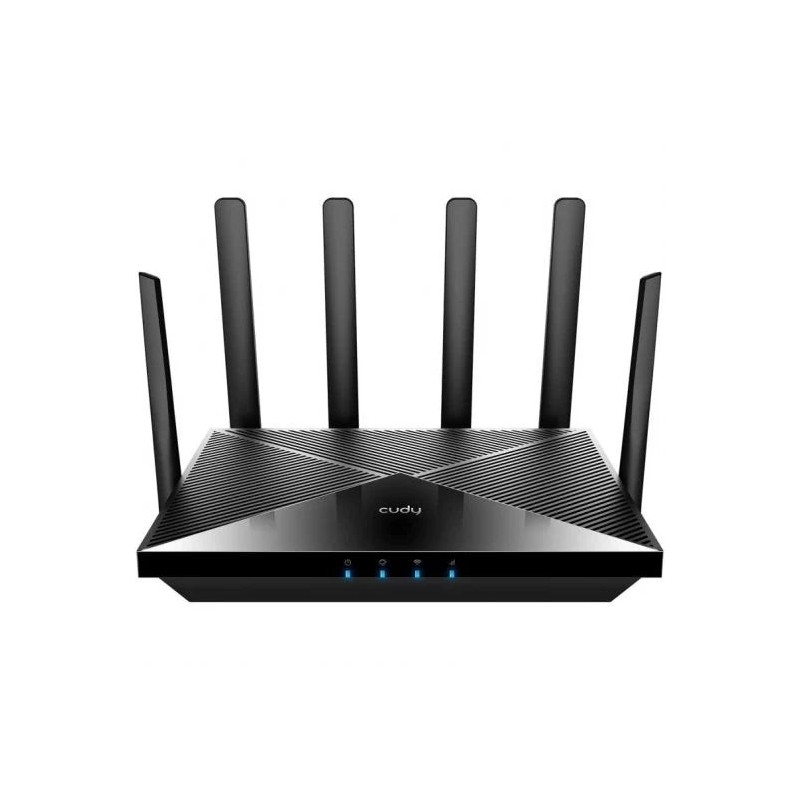

Cudy P5 5G SA/NSA AX3000 WiFi 6 CPE Dual Band Router - 4x LAN Ports 1000/100/10 Mbps - 6 External Antennas

The result of close collaboration between Qualcomm 5G and Qualcomm Wi-Fi 6 solutions, focused on unleashing full Wi-Fi and 5G speeds without interference. Equipped with an upgraded 5G standard, the P5 offers a fibre-like low-latency network for any demanding task.
The P5 delivers maximum 5G speeds of 2.5 Gbps (DL/SA) and 900 Mbps (UL/SA), perfectly matched with powerful 3000 Mbps dual-band Wi-Fi 6 for 4K streaming. It also supports Mesh technology for extensive coverage. Dual nano SIM slots provide redundant backup, and both slots can be filled. Automatic and manual modes are available for redundancy setup.
Set the WAN/LAN port as WAN to make sure you stay online. Detachable cellular antennas let you optimise reception by connecting extension cables of up to 12 metres* to the SMA connectors.
Qualcomm Snapdragon SDX62 5G NR SA / NSA modem inside.
The Cudy P5 supports 5G NR downlink speeds of up to 2.5 Gbps and 4G LTE downlink speeds of up to 1 Gbps. Wide-spectrum bandwidth speeds up the Internet and reduces network latency for premium, time-sensitive mobile broadband services.
Qualcomm IPQ5018 WiFi 6 SoC.
A high-capacity 1 GHz dual-core ARM Cortex-A53 802.11ax SoC delivers super-fast dual-band Wi-Fi with speeds of up to 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz. Exceptional wireless performance allows online gaming and HD video streaming at the same time, while large files can be shared with multiple devices.
Dual SIM and WAN failover keep you always connected to the Internet.
Dual SIM slots provide redundancy and keep your device always online. Set the WAN/LAN port as WAN so Cudy uses fixed Internet from the WAN, with the 3G/4G connection as backup for a reliable, sustained Internet connection.
The replaceable cellular antenna interface offers a range of installation options. 4 x 5 dBi cellular antennas and 2 x 5 dBi WiFi antennas improve the router's sensitivity and 5G NR and Wi-Fi signal quality. The cellular antennas are detachable; if you want to use an outdoor cellular antenna, the SMA connector makes that possible.
Múltiples clientes VPN.
With PPTP/L2TP/OpenVPN/WireGuard/IPsec/Zerotier VPN, this router can easily connect to a VPN server to carry all your data and online traffic, securing it with encryption. Supports 20+ DDNS providers, convenient for managing your remote cameras.
Specifications:
WAN connection:
-Ethernet WAN: Si
-DSL WAN: No
-SIM card slot: Yes
-3G / 4G USB modem compatible: Yes
-WAN connection type: RJ-45
Wireless LAN features:
-Banda Wi-Fi: Doble banda (2,4 GHz / 5 GHz)
-Estándar Wi-Fi: Wi-Fi 6 (802.11ax)
-WLAN data transfer rate (max.): 2402 Mbit/s
-Wi-Fi estándares: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
-WLAN data transfer rate (first band): 574 Mbit/s
-WLAN data transfer rate (second band): 2402 Mbit/s
Connection:
-Ethernet: Si
-Ethernet LAN interface type: Gigabit Ethernet
-Ethernet LAN data transfer rates: 1000 Mbit/s
-Cabling technology: 10/100/1000Base-T(X)
-Port forwarding: Yes
-Port triggering: Yes
-DNS dinámico: Si
-Servidor VPN: PPTP/L2TP/OpenVPN/WireGuard/IPsec/Zerotier
-Soporte VPN: PPTP/L2TP/OpenVPN/WireGuard/IPsec/Zerotier
Redes móviles:
-Mobile network generation: 5G
-Dual SIM apoyo: Si
-Estándares 3G: WCDMA
-Estándar 4G: LTE-FDD
-Bandas 5G compatibles: 6000 MHz
-SIM card type: NanoSIM
-Short message service (SMS): Yes
Ports and interfaces:
-Ethernet LAN (RJ-45) ports: 4
-Puerto USB: No
-DC-in jack: Yes
Management features:
-Quality of Service (QoS) support: Yes
-WPS push-button security: Yes
-MIMO: Si
Seguridad:
-Supported security algorithms: TTLS
-Cortafuegos: Si
-Filtrado: Si
-MAC address filtering: Yes
-IP address filter: Yes
-Soporte DMZ: Si
-Network address translation (NAT): Yes
-NAT, funcionalidad: Port Forwarding, Port Triggering, UPnP, DMZ
Protocolos:
-DHCP, cliente: Si
-DHCP, servidor: Si
-Universal Plug and Play (UPnP): Yes
-VoIP protocolos: IPv4/IPv6
Diseño:
-Product colour: Black
-Indicator light: Yes
-Product type: Desktop router
Antena:
-Antenna design: External
-Number of antennas: 6
-Antena desmontable (s): Si
Features:
-Procesador incorporado: Si
-Processor manufacturer: Qualcomm
-Processor frequency: 1000 MHz
-Number of processor cores: 2
-Memoria interna: 256 MB
-Internal memory type: DDR3
-Memoria Flash: 128 MB
Power:
-Power: Corriente alterna
-AC input voltage: 90 - 260 V
-Output voltage: 12 V
-Output current: 2,5 A
-External power adapter: Yes
Condiciones ambientales:
-Operating temperature range: 0 - 45 °C
-Storage temperature range: -40 - 70 °C
-Operating relative humidity range: 5 - 95%
System requirements:
-Navegador compatible: Firefox 12.0, Chrome 20.0, Safari 4.0
-Sistema operativo Windows soportado: Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista
-Sistema operativo Linux soportado: Si
-Sistema operativo MAC soportado: MacOS
-Mac compatible: Yes
Weight and dimensions:
-Width: 152,5 mm
-Depth: 253 mm
-Height: 48,2 mm
