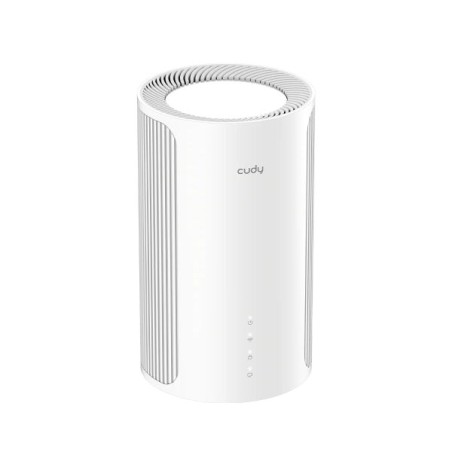

Cudy BE11000 WiFi 7 Mesh 2.5G Tri-Band System - MLO Technology - VPN Server and Client - 2.5Gbps Ethernet - Supports up to 200

Discover the power of advanced connectivity with the tri-band WiFi 7 mesh system, designed to deliver a limitless internet experience in environments that demand speed, low latency and large scale. Equipped with a 1.5GHz quad-core Qualcomm CPU and MLO technology, this system provides an extraordinary boost in Wi-Fi speed, reaching up to 2.5 Gbps, ideal for 4K streaming, online gaming and remote work with multiple devices at the same time. Its tri-band configuration with 6 streams and combined speeds of up to 6Gbps on the 6 GHz band, together with ample capacity on the 5GHz and 2.4 GHz bands, guarantees fast and stable coverage throughout your home or office.

This mesh system features 4 2.5 G Ethernet ports for high-speed wired connections, allowing easy integration with devices that require more bandwidth. It also supports up to 200 connected devices, ideal for smart homes, offices or spaces with multiple users. Compatibility with Cudy Mesh, VPN server and client functions, and management through the Cudy cloud app offer complete and secure control of your network, making setup and monitoring easy from anywhere.

With a compact design that is easy to install on a desktop, this WiFi 7 mesh system is the ultimate solution for those who want performance, scalability and reliability. Its range of up to 260 metres in open spaces and the ability to cover up to 350 m² with a pack of 3 units ensure even coverage in every corner of your home or business. With high-end technical specifications, efficient consumption and exceptional performance, this mesh system is the perfect choice for those who demand the best in connectivity.

Features:

-1.5GHz quad-core Qualcomm CPU

-6-stream tri-band Wi-Fi

-5.7Gbps + 4.3Gbps + 688 Mbps

-4 2.5 G Ethernet ports

-200 connected devices

-Cudy Mesh, VPN server and client

-Cudy app, cloud control

Specifications:

-CPU details: 1.5GHz quad-core Qualcomm CPU

-Flash/ROM: 128 MB (1 Gbit) NAND

-DDR/RAM: 512 MB (4 Gbit) DDR4

-6 GHz Wi-Fi speed: 5765 Mbps

-5 GHz Wi-Fi speed: 4324Mbps (240 MHz) 2882Mbps (160 MHz)

-2.4 GHz Wi-Fi speed: 688 Mbps

-6 GHz Wi-Fi streams: 2T2R (2×2 MIMO)

-5 GHz Wi-Fi streams: 2T2R (2×2 MIMO)

-2.4 GHz Wi-Fi streams: 2T2R (2×2 MIMO)

-Wi-Fi antennas: 6× fixed

-FEM or PA/LNA: 6 GHz: 2× high power / 5 GHz: 2× high power / 2.4 GHz: 2× standard

-Beamforming: True

-Range performance: Maximum: 260m (853 ft) Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on the layout and materials of the walls. Refer to the wall performance specifications for placement suggestions.

-Wall performance: Two wooden walls with thickness < 10cm (4") One concrete wall with thickness < 20cm (7") or two concrete walls with thickness < 10cm (4")

-Indoor coverage reference: Pack of 2: 250 m² (2700 sq. ft) Pack of 3: 350 m² (3700 sq. ft) Applied to the wireless backhaul situation. Place in the centre of each floor, with a maximum of three obstacles to each room.

-2.5G RJ45 ports: 4

-Ethernet notes: 1× WAN port, the rest are LAN ports

-LED: System / LAN / Wi-Fi / Mesh

-Physical buttons: WPS button / Reset button

-Power interfaces: DC jack

-Power methods: DC

-Power input: 12V⎓2A

-Power adapter included: Input: 100-240V~, 50/60Hz Output: 12V⎓2A

-Maximum power consumption (W): 22W

-Standby power consumption (W): 12W

-Environment: Operating temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) / Storage temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) / Humidity: 10% ~ 90% non-condensing / Storage humidity: 5% ~ 95% non-condensing

-Installation: Desktop

-Dimensions: Φ116×202mm Φ4.57×7.95 inches

-Product weight: 852.5g (30.07 oz.)
