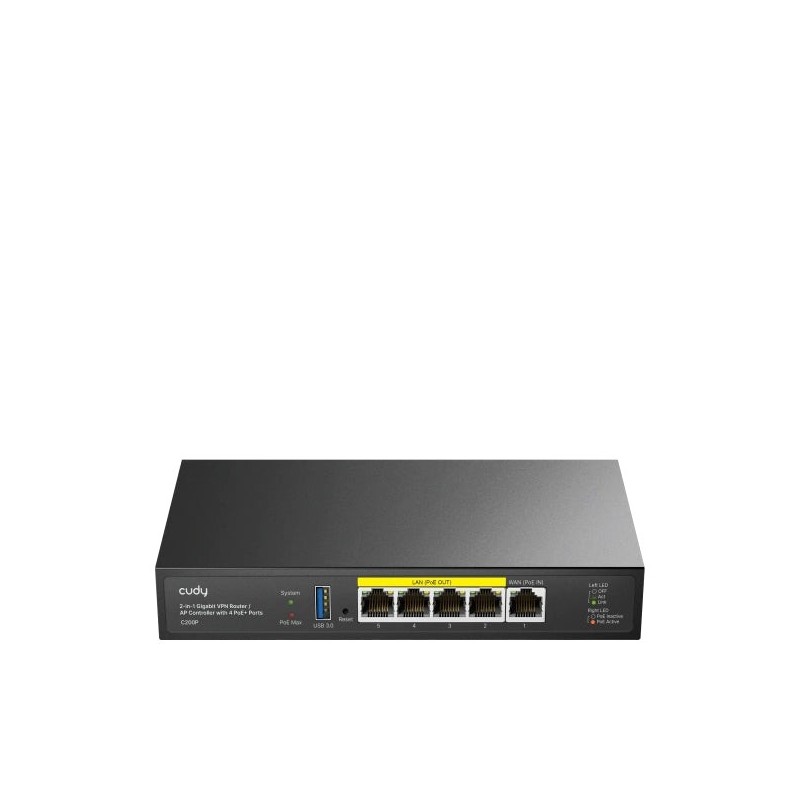

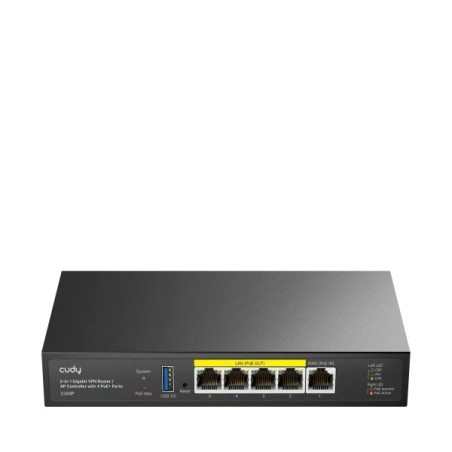

Cudy VPN Router - 1Gbps Ethernet - 4 GbE PoE Outputs - 60W - Manage up to 200 Access Points - USB 3,0 - LED Indicators - Metal

Discover the Cudy Gigabit router, the definitive solution to manage and enhance Wi-Fi connectivity throughout your home or office. Designed to deliver exceptional performance, this device doubles as a Cudy access point controller, allowing you to manage up to 200 APs easily and efficiently. With four PoE outputs that comply with IEEE 802,3at/af standards, you can power and connect multiple network devices, optimizing your wireless network infrastructure and ensuring stable and fast coverage in every corner.
This router has a powerful 880 MHz CPU in dual-core configuration, 256 MB of DDR3 RAM and 16 MB of Flash memory, ensuring smooth and reliable performance. It includes five Gigabit RJ45 ports, of which four are PoE, and an additional port for WAN connection, facilitating integration with your existing network. In addition, it has a USB 3,0 port to connect external devices, and advanced functions such as a captive portal, VPN server and client, and compatibility with Cudy Mesh, which allows you to further expand Wi-Fi coverage in your home or business.
Constructed of high-quality materials in a sturdy metal casing, this device is compact and easy to install, whether desktop or wall-mounted. Its design includes indicator LEDs to monitor system status, PoE and links, plus a reset button for easy management. With a maximum power consumption of 60W and support for various power sources, the Cudy router is the ideal choice for those looking for a powerful, versatile and reliable solution for their on-demand connectivity needs.
Features:
-4× GbE with 802,3at/af Mode A PoE
-1 Gigabit Ethernet port
-1 USB 3,0 port
-60W power supply
-Manage 200 AP1
-Captive portal
-Cudy Mesh, VPN server and client
Specifications:
-CPU Details: 880 MHz Dual-Core
-Flash/ROM: 16 MB (128 Mbit) NOR
-DDR/RAM: 256 MB (2 Gbit) DDR3
-Gigabit RJ45 ports: 5
-Gigabit RJ45 PoE ports: #2~#5
-Maximum power on a single PoE port: 30W
-PoE ports notes: PoE ports comply with IEEE 802,3at/af standards.
-Ethernet Notes: 1× WAN Port, 4× LAN Ports
-USB-A 3,0 ports: 1
-LED: System status / Maximum PoE status / Link/activity/PoE status of each PoE port
-Physical buttons: Reset button
-Power input: DC connector
-Power methods: DC / Passive PoE 802,3at/af / Passive PoE
-DC: 54V 1,11A
-Passive PoE: 24/48V
-Power Adapter: Input: 100 ~ 240 V, 50Hz AC Output: 54V 1,11A DC
-Maximum power consumption (W): Total: 60W PoE: 55W PoE (when a USB device is connected): 50W Without PoE: 5W
-Standby power consumption (W): 2W
-EMS: IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV, Air: 8kV
-Environment: Operating temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~ 104 ℉) Storage temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Operating humidity: 5% ~ 95% non-condensing Storage humidity: 0% ~ 100% non-condensing
-Grounding methods: Grounding point
-Installation: Desktop / Wall Mount
-Shell material: Metal
-Dimensions: 190×100×28mm 7,48×3,94×1,1 inches
