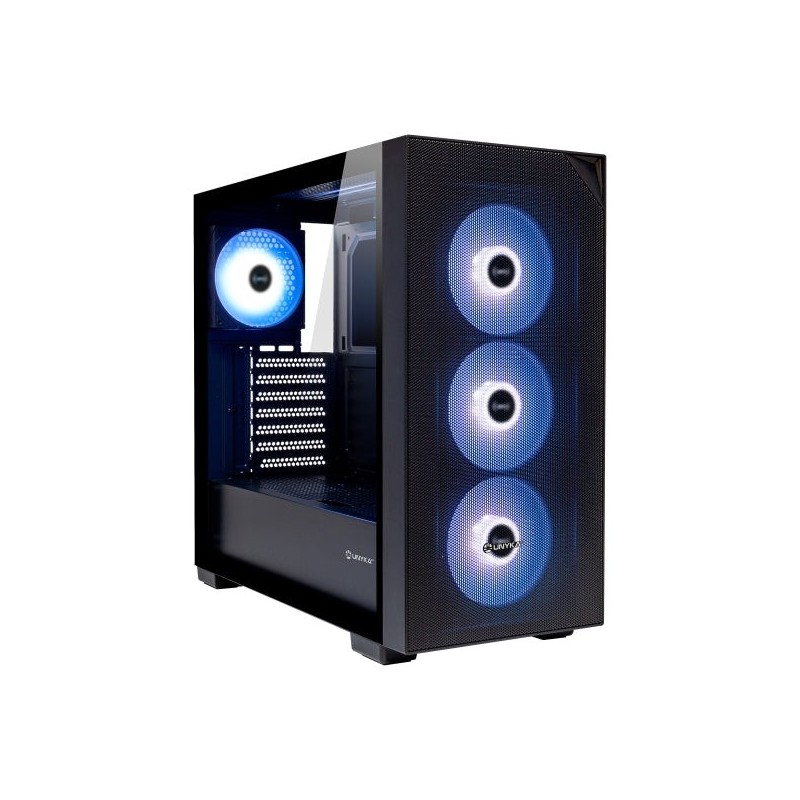

Unykach Revelat Mesh Black ATX, Micro ATX, ITX Case - Tempered Glass Side Panel - 3.5", 2.5" - USB-A 3.0, USB-C and Audio

Unykach's Revelat MESH Black combines the thermal performance of an open chassis with a tempered glass side panel to proudly show off your custom hardware. Design, airflow and RGB style in one case.
Designed for maximum performance and versatility, the Revelat MESH supports E-ATX, ATX and Micro ATX motherboards and graphics cards up to 425 mm long. It also supports liquid cooling systems up to 360 mm, ensuring optimal airflow to keep your hardware at the ideal temperature even in the most demanding conditions.
The ergonomic top panel design has USB 3.0 and Type-C Gen 2 ports and keeps all your ports always accessible without sacrificing space or style. Perfect for gamers, content creators and professionals who need fast, hassle-free connectivity.
With angular lines and minimalist details, the Revelat MESH combines futuristic design with practical functionality. Its matte black finish adds a premium touch that suits any desk setup.
For easy access and connectivity for all your devices, UNYKAch's Revelat MESH has a full connectivity panel on top: a USB Type-C 3.1 Gen2 port, ideal for ultra-fast data transfers, 2 USB 3.0 ports for efficient peripheral connection, and an HD audio connector for optimal sound quality for your headphones or microphones.
For total control, the tower includes an LED control button so you can customise the ARGB lighting quickly and easily to match your style at any moment.
UNYKAch's Revelat MESH is designed with a spacious, well-structured interior, ideal for demanding builds. Measuring 454 mm (L) x 218 mm (W) x 470 mm (H), it supports large-format motherboards (E-ATX, ATX, Micro ATX, ITX) and the latest graphics cards.
It supports CPU air coolers up to 170 mm tall and graphics cards up to 425 mm long, ensuring compatibility with the most powerful components on the market.
UNYKAch's Revelat MESH is designed for exceptional thermal performance. Its design allows up to 10 fans to be installed for optimal airflow in any configuration. It is also fully compatible with liquid cooling systems up to 360 mm, which can be installed at the top for efficient heat dissipation. Whether with traditional or liquid cooling, this tower gives you the flexibility to keep your system at the ideal temperature.
UNYKAch's Revelat MESH includes 4 x 120 mm ARGB fans designed for the perfect balance between performance and silence. With 9 blades and hydraulic bearings, they deliver an optimised 48.1 CFM airflow to keep your system cool at all times. With PWM control (4-pin), they automatically adjust speed between 800 and 1100 RPM ±10%, keeping noise to a maximum of 27 dBA. Their customisable ARGB lighting adds a unique look to your setup.
The Revelat MESH keeps your system dust-free with wide ventilation grilles and two strategically placed magnetic dust filters at the top and bottom. These filters are easy to remove and refit, ensuring quick, effective cleaning for optimal performance.
Specifications:
-Chassis type: ATX
-Colour: Black
-Material: SGCC 0,5 mm / ABS / Cristal Templado
-Placas base compatibles: E-ATX / ATX / Micro ATX
-Panel lateral: Cristal Templado
-Ventiladores: 4 x 120 mm Incluidos
-Expansion slots: 7
-Internal bays: 2 x 2 ´5″ + 2 x 3 ´5″ o 3 x 2 ´5″ + 1 x 3 ´5″
-Conectores: 2x USB 3.0 / 1 x USB Type C GEN 2
-Audio: Yes
-Fuente compatible: ATX
-Compatible with air and liquid cooling
-Maximum fan capacity: Front 3 x (120 mm) / Rear 1 x (120 mm) / Top 2 x (140 mm) or 3 x (120) / Bottom 3 x (120 mm)
-Maximum liquid cooling size: Front 240 / Top 240 – 360 (memory height up to 45 mm)
-Altura máxima refrigerador CPU: 170 mm
-Maximum graphics card size: 425 mm
-Filtro antipolvo: 2
-Dimensiones: 454 (L) x 218 (W) x 470 (H) mm
-Weight: 8,96 kg
Fan:
-Dimensiones: 120 (L) x 120 (W) x 25 (H) mm
-Colour: Black / White
-Diseño: ARGB
-Cojinete: Hidráulico
-RPM: 800 / 1100 RPM ± 10 %
-Presión máxima: 48.1 CFM
-Noise level: 27dBA
-Number of blades: 9
-Connector: 4 Pin
-PWM
Contents:
-Caja ATX
-4 Ventiladores
Certifications:
-CE/ROHS
