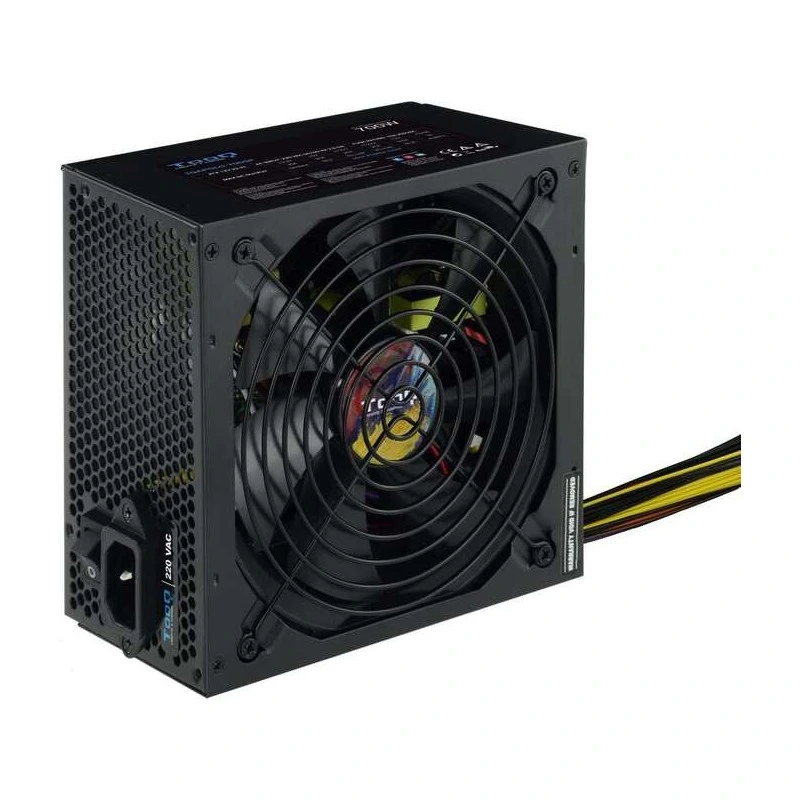

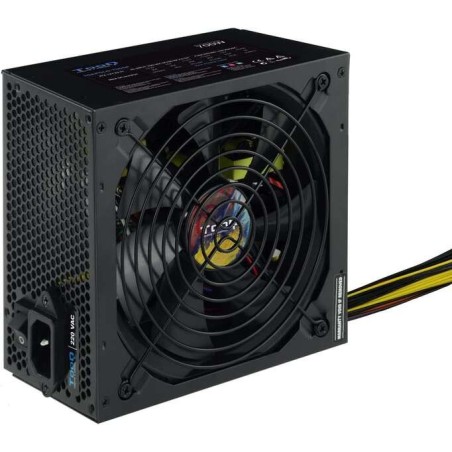

Tooq ATX 2.3 700W Power Supply with Active PFC
P/N: TQAPOLO-700SP |EAN: 8433281010307
€34.70
Tax included
In stock! Ships today!
VAT included
All the power you need with the TQAPOLO-700SP ATX 700W Power Supply with Active PFC. TooQ power supplies undergo rigorous quality controls to ensure an optimal, long-lasting product.
Specifications:
Power control:
-Total power: 700W
-AC input voltage: 220V
-AC input frequency: 50/60Hz
-Input current: 2.5 - 5A
-Power factor correction type (PFC): Active
-Maximum output current (+3.3V): 30A
-Maximum output current (+12V1): 20A
-Maximum output current (+12V2): 20A
-Maximum output current (+5V): 30A
-Maximum output current (-12V): 0.5A
-Maximum output current (+5Vsb): 3A
-Power protection functions: Overcurrent, Overvoltage, Overvoltage, Overheating, Short circuit, Undervoltage
Ports and interfaces:
-Motherboard power connector: 20+4 pin ATX
-Motherboard power cable length: 45cm
-Number of SATA power connectors: 5
-SATA power cable length: 700mm
-Peripheral power connectors (4-pin) (Molex): 3
-Peripheral power cable length (Molex): 750mm
-PCI Express power connectors (6-pin): 1
-PCI Express power connectors (6+2 pin): 1
-PCI Express power cable length: 60cm
-CPU P4 connector (4-pin): 1
-CPU power connector (4+4 pins): Yes
-CPU power cable length: 45cm
-ATX power connector (20+4 pin): Yes
-Floppy power connector: 1
-Floppy disk drive connector: Yes
-Floppy disk drive cable length: 75cm
-PCI Express connector: Yes
Performance:
-80 PLUS certification: No
-Supported motherboard form factors: ATX
-Use with: PC
-Power supply (PSU) form factor: ATX
-ATX version: 2.3
-Mean time between failures: 10000h
Design:
-Product colour: Black
-Cooling type: Active
-Fan diameter: 14cm
-Number of fans: 1 fan(s)
-Fan location: Top
-Built-in on/off switch: Yes
Environmental conditions:
-Operating temperature range: 0 - 40 degrees C
Weight and dimensions:
-Width: 150mm
-Depth: 160mm
-Height: 85mm
