P/N: ASUC-9P001-GR |EAN: 8436574706260

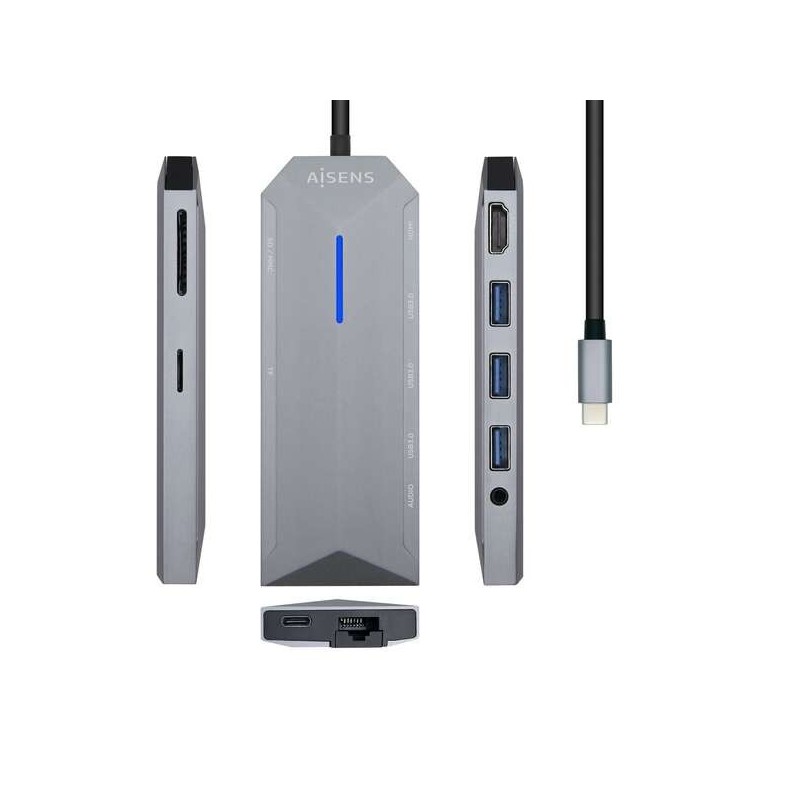

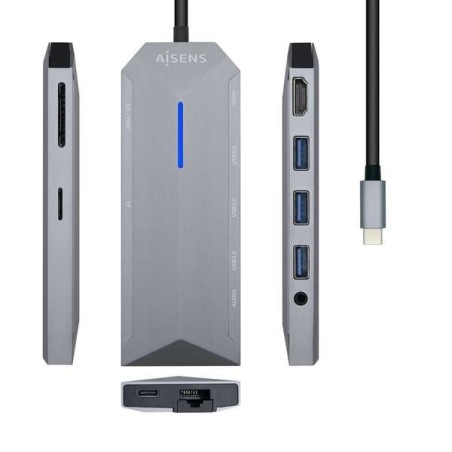

This multifunction product incorporates an aluminum casing making it very light, very small in size, modern in design and easy to transport. It is excellent for connecting expansion accessories to computers with a USB-C interface.
Turn your laptop into a powerful workstation wherever you are. Connect a display via the HDMI port with a resolution of up to 3840×2160@30Hz, power a laptop or tablet via the USB-C PD port up to 100W, the Ethernet port allows you to reliably access a wired network, connect your mouse, keyboard, external hard drive, etc. and power your smartphone, e-book reader, etc. Using the USB Type A ports, you can also read memory cards and connect your headphones/microphone to talk or listen to your favorite music.
You will never have to carry multiple single-function adapters again!
Specifications:
1xHDMI Port:
-The HDMI port supports a maximum resolution of up to 4Kx2K@30HZ(3840x2160p)
-Note: Not all devices with a USB-C connection can work with the HDMI output of this converter. ONLY Thunderbolt3 or USB-C connected devices that support DP ALT mode (DisplayPort Alt Mode or DisplayPort Alternate Mode) can work with the HDMI output of this converter. Please check with your device's manual before using this converter to avoid compatibility issues.
-Supports HDCP
1xRJ45 Ethernet port:
-Chipset: AX88179A
-Plug and play on Windows (10/11), Mac OS X (10,6-10,11), iPadOS 15, Linux OS etc. Note: It is required to install drivers for some operating systems or in case of abnormal operation such as low transfer speed, internet outage or no internet connection, etc.
-Note: If you encounter unstable performance when using this product, such as low transfer speed, internet outage or no internet connection, etc., please update the drivers to the latest version. You can download the latest version drivers from the aisenstech.com website by searching for the reference: ASUC-9P001-GR
-Compatible with IEEE 802,3az, IEEE 802,3, 802,3u, and 802,3ab, IEEE 802,3x
-Data transfer speed: 10, 100, 1000 Mbit/s
-Supports crossover detection and automatic correction.
3xUSB3,0 Ports:
-Supports transfer speed up to 5Gbps. Backward compatible with USB2,0, USB1,1 and USB1,0
-Suitable for connecting any accessory or USB peripheral such as keyboard, mouse, pendrive, external hard drive, printer, etc.
1xUSB-C Port (Power Delivery Only):
-The USB-C port only supports charging, it DOES NOT support data transfer, which means you cannot connect accessories or peripherals such as a pendrive, external hard drive, mouse, keyboard, etc. to the USB-C port of this converter.
-Supports USB PD 100W
1xSD Slot and 1xTF Slot:
-SD slot supports SDXC, SDHC, SD, MMC, RS-MMC cards
-TF slot supports Micro SDXC, Micro SD, Micro SDHC cards
-Note: You cannot insert cards into both slots at the same time, otherwise the card reader will stop reading the cards. In case the card reader does not read any cards, please remove all cards and only insert one card into the card reader at a time.
1x3,5mm Audio Port (supports 3-pin or 4-pin connection):
-16bit ADC chip built-in
-Sampling rate: 48. 96KHZ
-Bit width: 16 bits
General:
-Length: 15cm
-Color: Gray
-Regulations: RoHS, CE
-Function test: 100% tested
